$75 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description

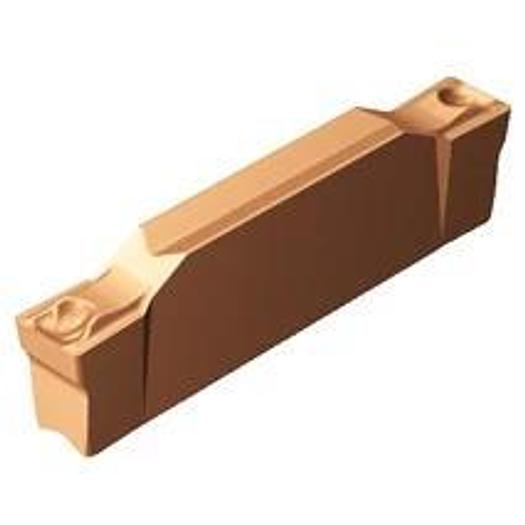

SANDVIK COROCUT Groove Turning Plates-GF
- Application Area: TP
- Coating Process Type: PVD
- Corner radius, left (REL): 0.3 mm
- Corner radius, right (RER): 0.3 mm
- fnx max: 0.14000000000000001 mm/r
- fnx min: 2.9999999999999999E-2 mm/r
- fnx rec: 7.0000000000000007E-2 mm/r
- Main clearance angle (AN): 7 deg
- Manufacturer item number: N123F2-0246-0003-GF 1125
- Manufacturer: SANDVIK COROMANT
- IC Code: 18000
- ISO Cutting Tool Material: HC
- Length of interfering edge (LIG): 20.05 mm
- Life Cycle Status (LCS): 20
- Upper corner radius tolerance (RETOLU): 0.05 mm
- Upper cutting width tolerance (CWTOLU): 0.02 mm
- Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size F2
- Cutting direction (HAND): N
- Cutting depth, max. (CDX): 19.1 mm
- Grade: 1125
- Chip breaker, manufacturer designation (CBMD): GF
- Grooving width, nominal dimension (CW): 2.46 mm
- Substrate Type: WC
- TMC Order: 1~2~3~4
- Lower corner radius tolerance (RETOLL): -0.05 mm
- Lower cutting width tolerance (CWTOLL): -0.02 mm
- vc max: 185~230~285~55 m/min
- vc min: 120~140~175~33 m/min
- vc rec: 140~170~210~40 m/min
- Material classification level 1(TMC1): K~M~P~S
- Grooving width nominal dimension C: 2.46 mm
- Corner radius right RE: 0.3 °
- Grade: 1125
- Recommended variety: P|M|K|S
- All ISO application areas: P|M|K|S
Specifications
Manufacturer | SANDVIK COROMANT |
Model | N123F2-0246-0003-GF1125 |
Year | 2025 |
Condition | New |
Serial Number | 520 N123F2-0246-0003-GF 1125 |
Stock Number | . |
