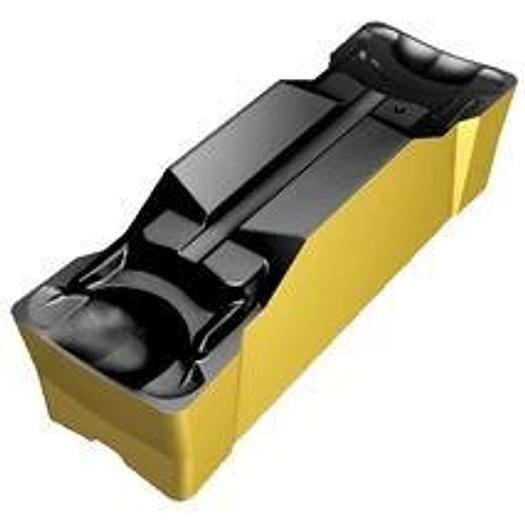

piercing

CoroCut® 1-2 cutting system for grooving

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.5 mm
• Corner radius, right (RER): 0.5 mm
• fnx max: 0.22 mm/r
• fnx min: 8.9999999999999997E-2 mm/r
• fnx rec: 0.14999999999999999 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: N123L2-0800-0005-GM 4325
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 29.42 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size L2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 28.4 mm
• Grade: 4325
• Chipbreaker, manufacturer designation (CBMD): GM
• Grooving width, nominal dimension (CW): 8 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 180~235 m/min
• vc min: 135~175 m/min
• vc rec: 150~195 m/min
• Material classification level 1(TMC1): K~P
• Grooving width nominal dimension C: 8 mm
• Corner radius right RE: 0.5 °
• Grade: 4325
• Recommended variety: P|K
• All ISO application areas: P|K
