piercing

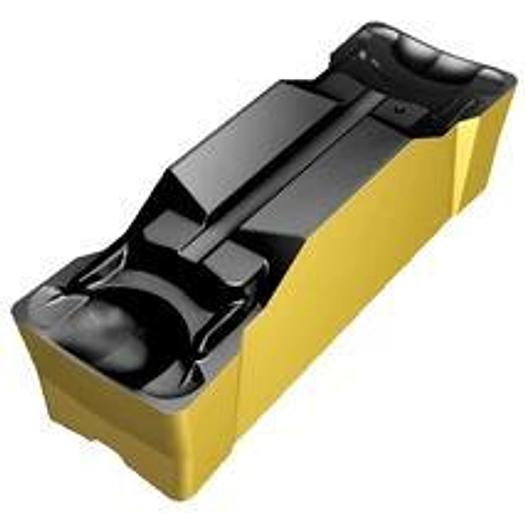

CoroCut® 1-2 cutting system for grooving

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.14000000000000001mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 8.0000000000000002E-2 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123G2-0300-0003-GM 4325
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 19.45 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size G2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 18.2 mm
• Grade: 4325
• Chipbreaker, manufacturer designation (CBMD): GM
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 220~290 m/min
• vc min: 160~205 m/min
• vc rec: 180~230 m/min
• Material classification level 1(TMC1): K~P
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.3 °
• Grade: 4325
• Recommended variety: P|K
• All ISO application areas: P|K
