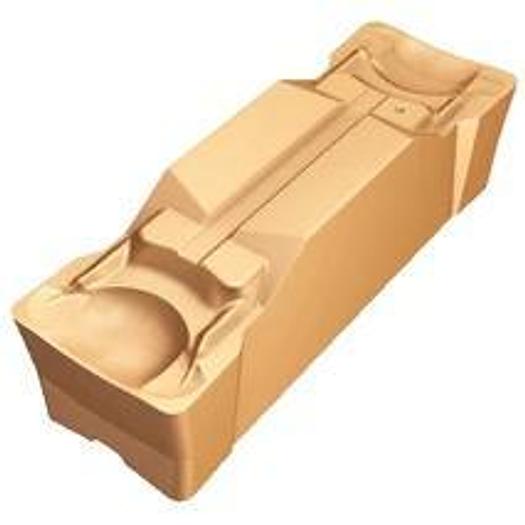

piercing

CoroCut® 1-2 cutting system for grooving

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 0.11 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: N123H2-0400-0003-GM 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 24.67 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 23 mm
• Grade: 1125
• Chipbreaker, manufacturer designation (CBMD): GM
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 160~195~240~45 m/min
• vc min: 120~135~170~32 m/min
• vc rec: 130~155~195~37 m/min
• Material classification level 1(TMC1): K~M~P~S
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.3 °
• Grade: 1125
• All ISO application areas: P|M|K
• Recommended variety: M
