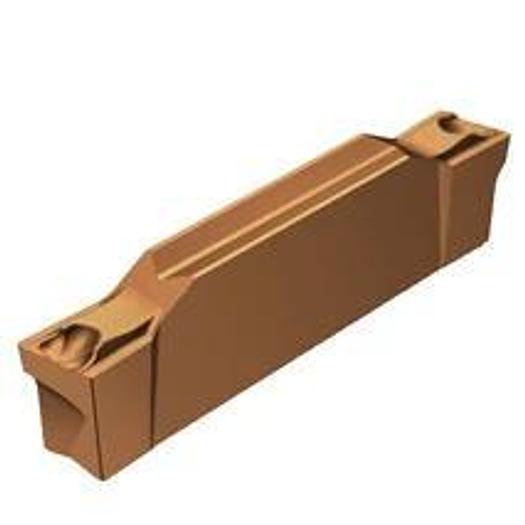

parting

CoroCut® 1-2 cutting system for parting off

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.1 mm
• Corner radius, right (RER): 0.1 mm
• fnx max: 0.14000000000000001mm/r
• fnx min: 2.9999999999999999E-2 mm/r
• fnx rec: 8.9999999999999997E-2 mm/r
• Main clearance angle (AN): 5 deg
• Main cutting edge angle, left (PSIRL): 10 deg
• Manufacturer item number: L123G2-0300-1001-CS 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size G2
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 19.4 mm
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): CS
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 185~230~285~55 m/min
• vc min: 120~140~175~33 m/min
• vc rec: 140~170~210~40 m/min
• Material classification level 1(TMC1): K~M~P~S
• Grooving width nominal dimension C: 3 mm
• Grade: 1125
• Corner radius right RE: 0.1 °
• All ISO application areas: P|M|K|S
