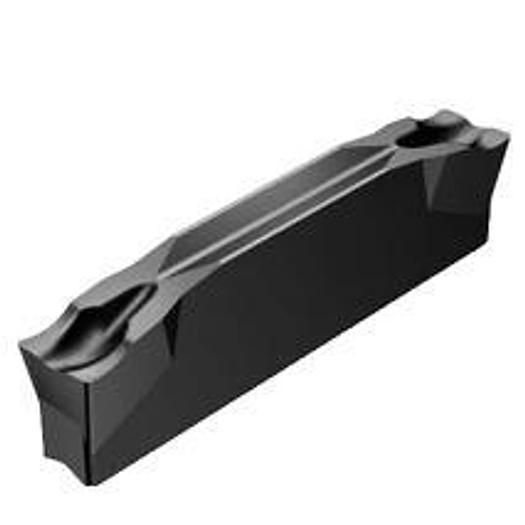

parting

CoroCut® 1-2 cutting system for parting off

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 0.25 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 0.13 mm/r
• Main clearance angle (AN): 7 deg
• Main cutting edge angle, left (PSIRL): 5 deg
• Manufacturer item number: L123G2-0300-0502-CM 3115
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 19.67 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size G2
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 18.8 mm
• Grade: 3115
• Chip breaker, manufacturer designation (CBMD): CM
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 300 m/min
• vc min: 175 m/min
• vc rec: 215 m/min
• Material classification level 1 (TMC1): P
• Grooving width nominal dimension C: 3 mm
• Grade: 3115
• Corner radius right RE: 0.2 °
• All ISO application areas: P|K
