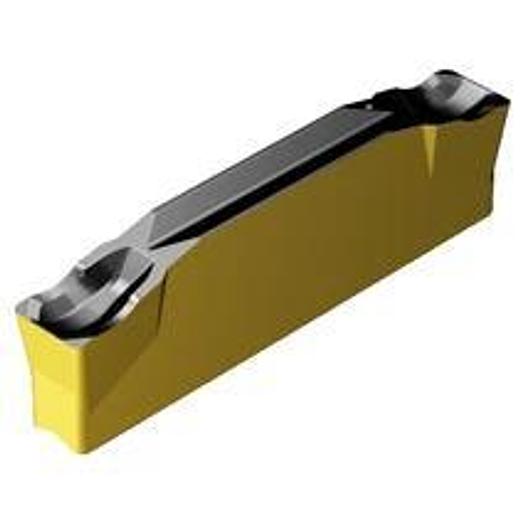

parting

CoroCut® 1-2 cutting system for parting off

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.31 mm/r
• fnx min: 0.10000000000000001 mm/r
• fnx rec: 0.17999999999999999 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123H2-0400-0003-CR 4325
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 24.62 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 23.7 mm
• Grade: 4325
• Chip breaker, manufacturer's designation (CBMD): CR
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 175~230 m/min
• vc min: 120~155 m/min
• vc rec: 140~180 m/min
• Material classification level 1(TMC1): K~P
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.3 °
• Grade: 4325
• All ISO application areas: P|K
• Recommended variety: P|K
