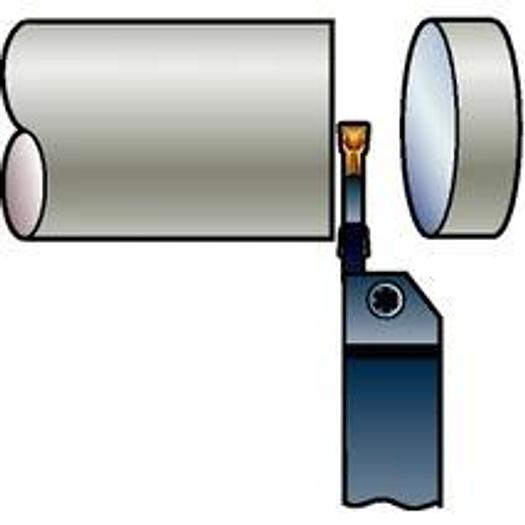

parting

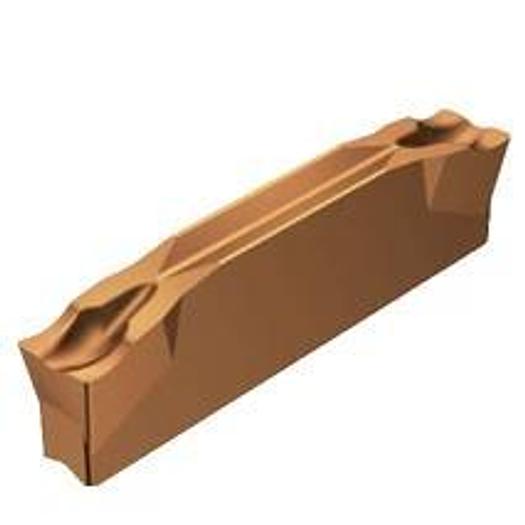

SANDVIK COROCUT parting inserts -CM

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 0.23999999999999999~0.299999999999999999 mm/r
• fnx min: 5.0000000000000003E-2~5.99999999999999998E-2~8.00000000000000|02E-2 mm/r
• fnx rec: 0.12~0.17999999999999999mm/r
• Main clearance angle (AN): 7 deg
• Main cutting edge angle, left (PSIRL): 5 deg
• Manufacturer item number: L123H2-0400-0502-CM 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 24.81 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H2
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 24.1 mm
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): CM
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 155~170~240~45 m/min
• vc min: 105~110~145~28 m/min
• vc rec: 120~130~180~33 m/min
• Material classification level 1(TMC1): K~M~P~S
• Grooving width nominal dimension C: 4 mm
• Grade: 1125
• Corner radius right RE: 0.2 °
• Recommended variety: K|S
• All ISO application areas: P|M|K|S
