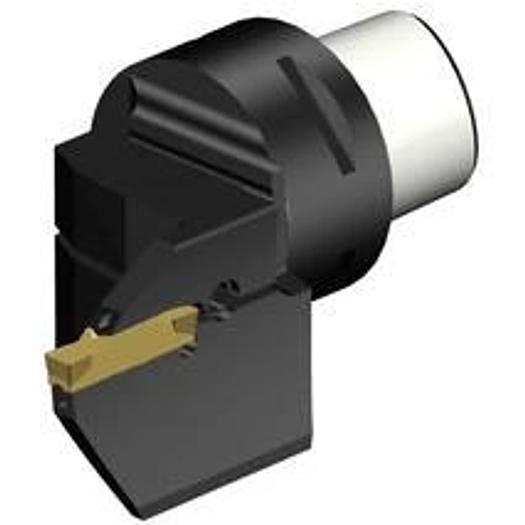

Coromant Capto cutting heads

SANDVIK CC cutting heads COROCUT 1-2 M

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C4

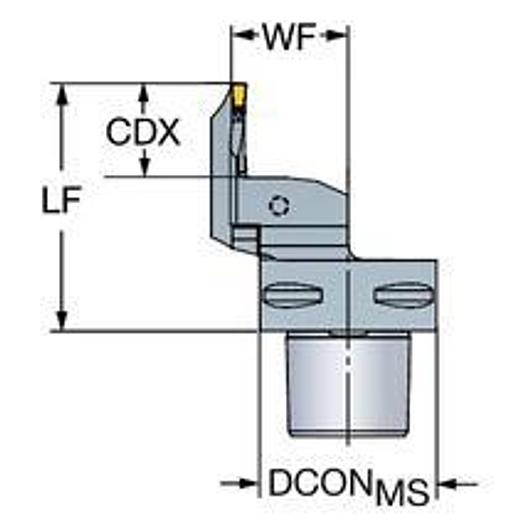

• Axial cutting diameter, max.(DAXX): 180 mm
• Axial cutting diameter, min.(DAXIN): 120 mm
• DCONMS: 40 mm
• Functional width (WF): 27 mm
• Functional length (LF): 70 mm
• Manufacturer item number: C4-RF123J25CE-120B
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 150 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 70 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 25 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size J (N123J2-0500-0004-TF)
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C4
• Cutting depth max CD: 25 mm
• Axial cutting diameter min DAXI: 120 mm
