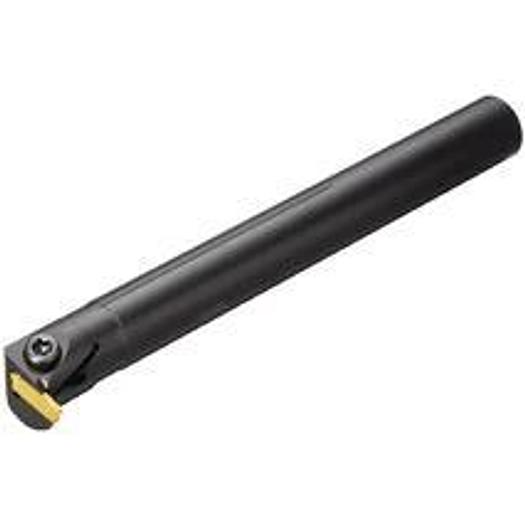

CoroCut 1 and 2 boring bar, one-piece

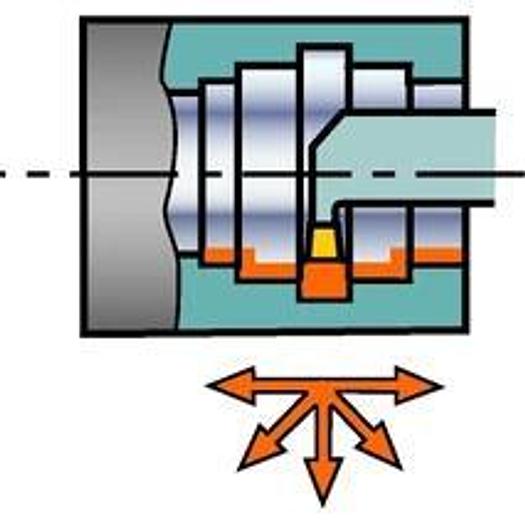

CoroCut® 1-2 boring bar for grooving

• Adapter interface machine direction(ADINTMS): Cylindrical shank w/ 3 flats -inch: 1 1/4

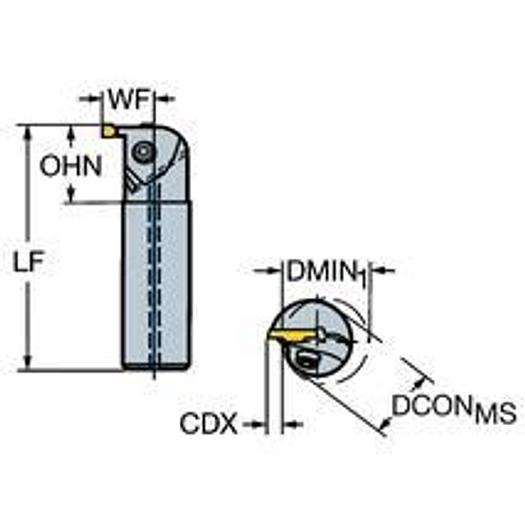

• Bore diameter, min.(DMIN1): 40 mm
• DCONMS: 31.75 mm
• Torque (TQ): 4 Nm
• Functional width (WF): 25.75 mm
• Functional length (LF): 250 mm
• Manufacturer's ArtNo: LAG123E035-20B
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 31.75 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 127 mm
• Minimum cantilever length (OHN): 45 mm
• Shaft height (H): 29.972 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 9.5 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size E (N123E2-GM)
• Adapter interface machine direction ADINTM: Cylindrical shank w/ 3 flats -inch: 1 1/4
• Mounting diameter: 31.75 mm
• Part_2 of the identifiers for the cutting part interface_CUTIN: CoroCut 2 -size E (N123E2-GM)
