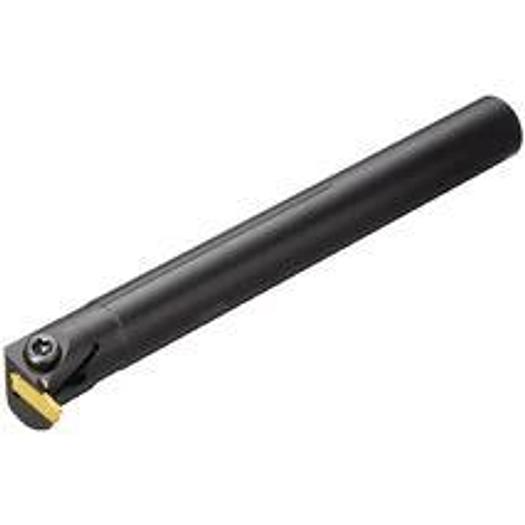

CoroCut 1 and 2 boring bar, one-piece

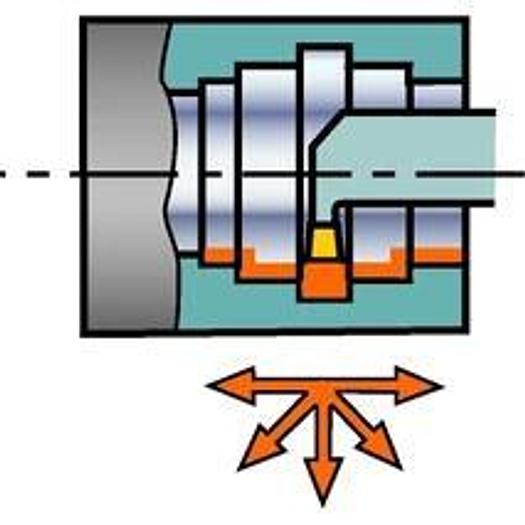

CoroCut® 1-2 boring bar for grooving

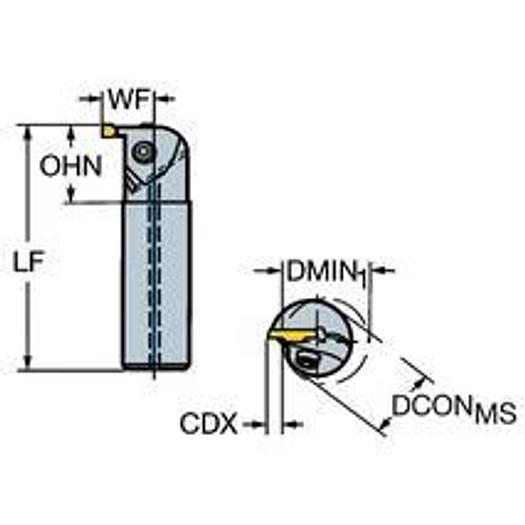

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 3/4
• Bore diameter, min.(DMIN1): 32 mm
• DCONMS: 19.05 mm
• Torque (TQ): 3 Nm
• Position Assist Property (LOCAP): 1
• Functional width (WF): 15,025 mm
• Functional length (LF): 180 mm
• Manufacturer's ArtNo: LAG123D020-12B
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 19.05 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 76.2 mm
• Minimum cantilever length (OHN): 30 mm
• Cutting direction (HAND): L
• Cutting depth, max.(CDX): 5 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size D (N123D2-CM)
• Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -inch: 3/4
• Mounting diameter: 19.05 mm
• Part_2 of the identifiers for the cutting part interface_CUTIN: CoroCut 2 -size D (N123D2-CM)
