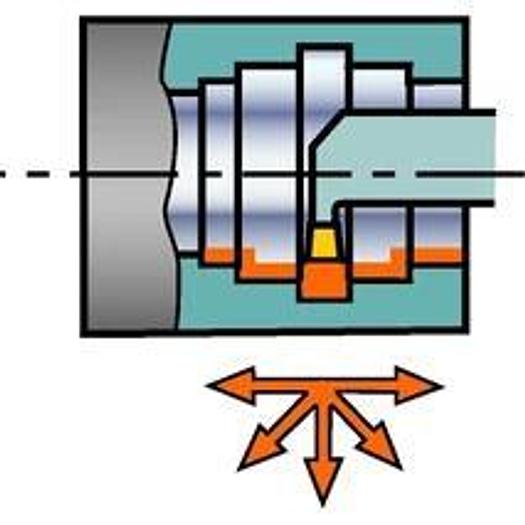

CoroCut 1 and 2 boring bar, one-piece

SANDVIK COROCUT 1-2 boring bar, one-piece

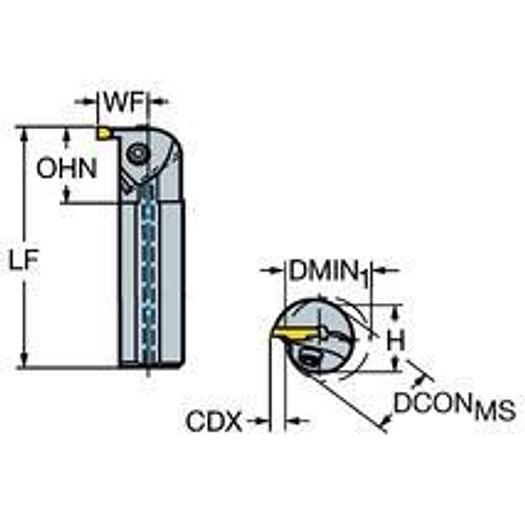

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 25.0
• Bore diameter, min.(DMIN1): 32 mm
• DCONMS: 25 mm
• Torque (TQ): 5 Nm
• Position Assist Property (LOCAP): 1
• Functional width (WF): 19.75 mm
• Functional length (LF): 200 mm
• Manufacturer's ArtNo: LAG123J08-25B
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 25 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 100 mm
• Minimum cantilever length (OHN): 35 mm
• Cutting direction (HAND): L
• Cutting depth, max.(CDX): 8 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size J (N123J2-GM)
• Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -metric: 25.0
• Mounting diameter: 25 mm
• Part_2 of the identifiers for the cutting part interface_CUTIN: CoroCut 2 -size J (N123J2-GM)
