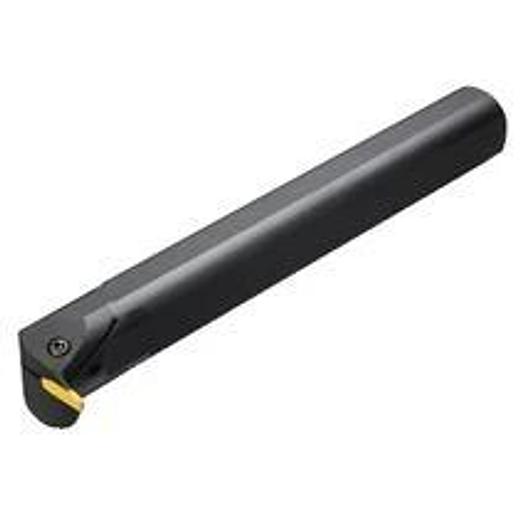

CoroCut 1 and 2 boring bar, one-piece

CoroCut® 1-2 boring bar for grooving

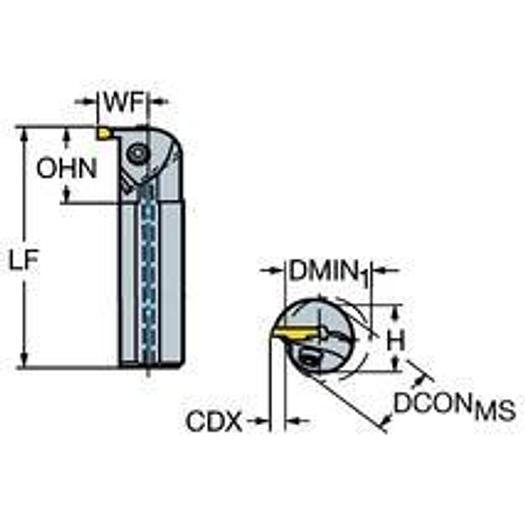

• Adapter interface machine direction(ADINTMS): Cylindrical shank w/ 3 flats -inch: 1 1/2
• Bore diameter, min.(DMIN1): 50 mm
• DCONMS: 38.1 mm
• Torque (TQ): 5.5 Nm
• Functional width (WF): 30.2 mm
• Functional length (LF): 300 mm
• Manufacturer's ArtNo: LAG123J045-24B
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 38.1 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 152.4 mm
• Minimum cantilever length (OHN): 55 mm
• Shaft height (H): 37.084 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 11 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size J (N123J2-GM)
• Adapter interface machine direction ADINTM: Cylindrical shank w/ 3 flats -inch: 1 1/2
• Mounting diameter: 38.1 mm
• Part_2 of the identifiers for the cutting part interface_CUTIN: CoroCut 2 -size J (N123J2-GM)
