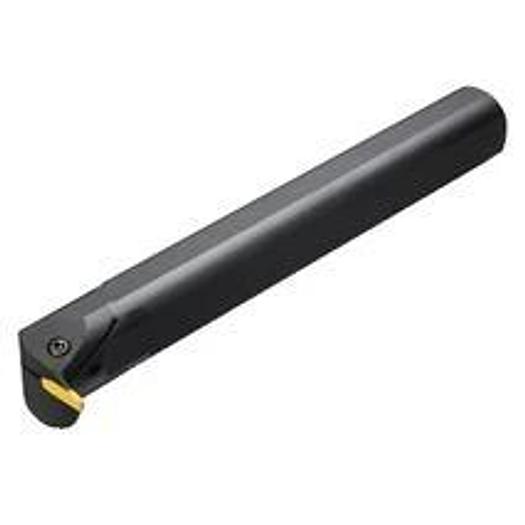

CoroCut 1 and 2 boring bar, one-piece

CoroCut 1 and 2 boring bar, one-piece

$480 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

SANDVIK COROCUT 1-2 boring bar, one-piece

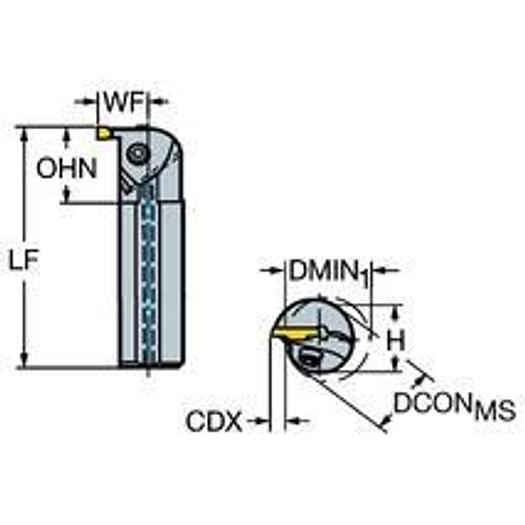

  • Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 20.0
  • Bore diameter, min.(DMIN1): 32 mm
  • DCONMS: 20 mm
  • Torque (TQ): 3 Nm
  • Position Assist Property (LOCAP): 1
  • Functional width (WF): 15.25 mm
  • Functional length (LF): 180 mm
  • Manufacturer's ArtNo: LAG123D05-20B
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 19160
  • Body diameter (BD): 20 mm
  • Body angle, workpiece side (BAWS): 90 deg
  • Coolant pressure (CP): 10 bar
  • Coolant outlet (CXSC): 3: axial inclined exit
  • Coolant inlet (CNSC): 1: axial concentric entry
  • Life Cycle Status (LCS): 20
  • Maximum cantilever length (OHX): 80 mm
  • Minimum cantilever length (OHN): 30 mm
  • Cutting direction (HAND): L
  • Cutting depth, max.(CDX): 5 mm
  • Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size D (N123D2-CM)
  • Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -metric: 20.0
  • Mounting diameter: 20 mm
  • Part_2 of the identifiers for the cutting part interface_CUTIN: CoroCut 2 -size D (N123D2-CM)


Specifications

ManufacturerSANDVIK COROMANT
ModelLAG123D05-20B
Year2024
ConditionNew
Serial Number520 LAG123D05-20B
