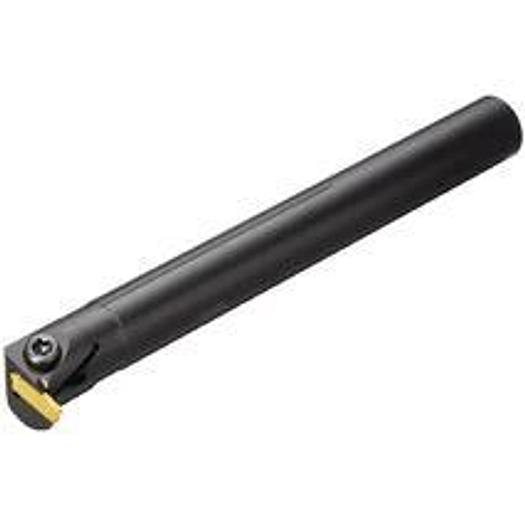

CoroCut 1 and 2 boring bar, one-piece
CoroCut 1 and 2 boring bar, one-piece
$660 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description

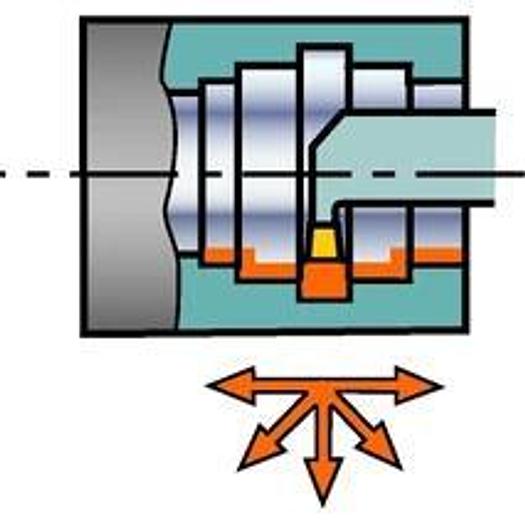

CoroCut® 1-2 boring bar for grooving

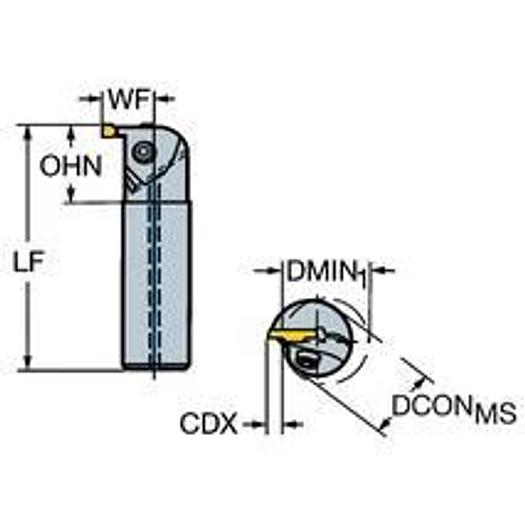

- Adapter interface machine direction(ADINTMS): Cylindrical shank w/ 3 flats -metric: 32
- Bore diameter, min.(DMIN1): 40 mm
- DCONMS: 32 mm
- Torque (TQ): 4 Nm
- Functional width (WF): 25.5 mm
- Functional length (LF): 250 mm
- Manufacturer's ArtNo: LAG123E09-32B
- Manufacturer: SANDVIK COROMANT
- IC Code: 19160
- Body diameter (BD): 32 mm
- Body angle, workpiece side (BAWS): 90 deg
- Coolant pressure (CP): 10 bar
- Coolant outlet (CXSC): 3: axial inclined exit
- Coolant inlet (CNSC): 1: axial concentric entry
- Life Cycle Status (LCS): 20
- Maximum cantilever length (OHX): 128 mm
- Minimum cantilever length (OHN): 45 mm
- Shaft height (H): 30 mm
- Cutting direction (HAND): L
- Cutting depth, max. (CDX): 9.5 mm
- Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size E (N123E2-GM)
- Adapter interface machine direction ADINTM: Cylindrical shank w/ 3 flats -metric: 32
- Mounting diameter: 32 mm
- Part_2 of the identifiers for the cutting part interface_CUTIN: CoroCut 2 -size E (N123E2-GM)
Specifications
Manufacturer | SANDVIK COROMANT |
Model | LAG123E09-32B |
Year | 2024 |
Condition | New |
Serial Number | 520 LAG123E09-32B |
Stock Number | . |
