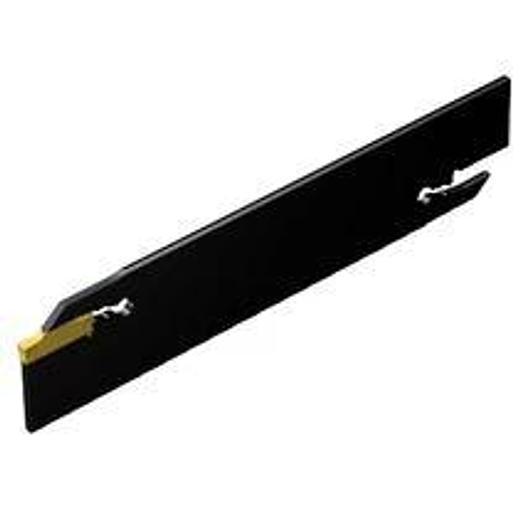

CoroCut 1 and 2 cutting blades + clamping blocks

SANDVIK COROCUT 1-2 inserts

• Cutting diameter (CUTDIA): 30 mm
• Adapter interface machine direction (ADINTMS): Parting off and grooving blade -size 21
• Functional width (WF): 1.25 mm
• Functional height (HF): 21.4 mm
• Functional length (LF): 110 mm
• Manufacturer's ArtNo: N123D15-21A2
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 30 mm
• Shaft height (H): 25.9 mm
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 15 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size D (N123D2-CM)
• Functional width W: 1.25 mm
• Adapter interface machine direction ADINTM: Parting off and grooving blade -size 21
• Functional length L: 110 mm
