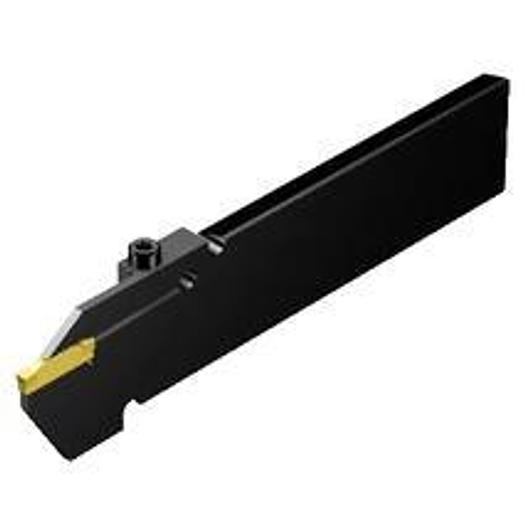

CoroCut 1 and 2 cutting blades + clamping blocks

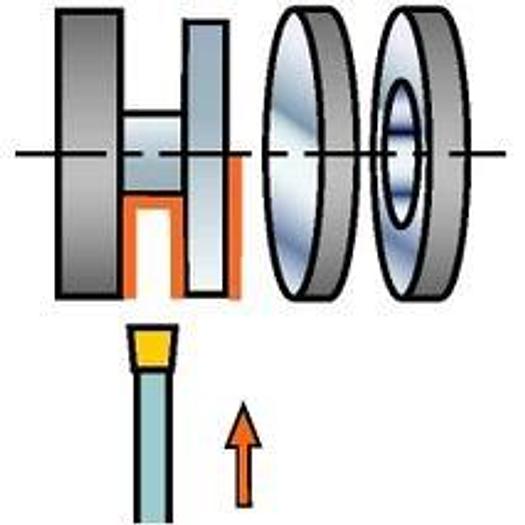

CoroCut® 1-2 cassette for parting off

• Cutting diameter (CUTDIA): 50 mm
• Adapter interface machine direction (ADINTMS): Parting off and grooving blade -size 25R
• Torque (TQ): 4.5 Nm
• Functional width (WF): 2,675 mm
• Functional height (HF): 25 mm
• Functional length (LF): 150 mm
• Manufacturer's ArtNo: LF123G25-25B1
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 45 mm
• Shaft height (H): 31.9 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 25 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size G (N123G2-0300-0003-TF)
• Functional width W: 2,675 mm
• Adapter interface machine direction ADINTM: Parting off and grooving blade -size 25R
• Functional length L: 150 mm
