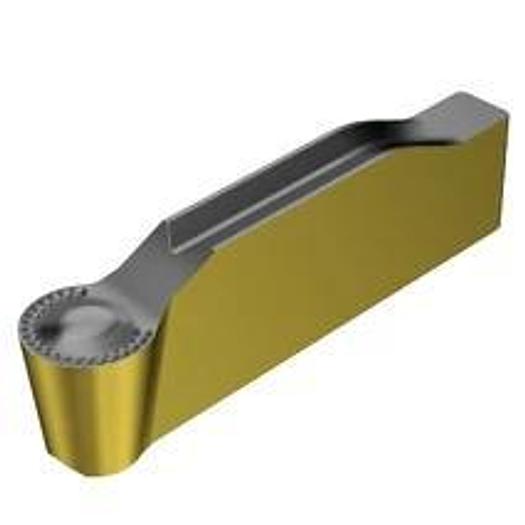

profile turning

CoroCut® 1-2 cutting system for profile turning

• Application Area: TP
• Coating Process Type: CVD
• Corner radius (RE): 2 mm
• fnx max: 0.20999999999999999 mm/r
• fnx min: 8.0000000000000002E-2 mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.60999999999999999 mm
• fnz min: 0.20999999999999999 mm
• fnz rec: 0.40000000000000002 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123G1-0400-RM 4325
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 20.02 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 1.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size G1
• Cutting direction (HAND): N
• Grade: 4325
• Chip breaker, manufacturer designation (CBMD): RM
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 190~245 m/min
• vc min: 140~175 m/min
• vc rec: 155~200 m/min
• Material classification level 1(TMC1): K~P
• Corner radius R: 2 mm
• Chipbreaker manufacturer designation CBM: RM
• Grade: 4325
• All ISO application areas: P|K
• Recommended variety: P|K
