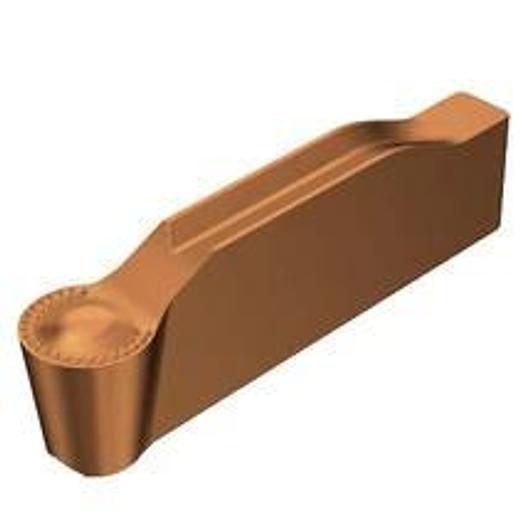

profile turning

CoroCut® 1-2 cutting system for profile turning

• Application Area: TP
• Coating Process Type: PVD
• Corner radius (RE): 3 mm
• fnx max: 0.28000000000000003 mm/r
• fnx min: 0.14999999999999999 mm/r
• fnx rec: 0.22 mm/r
• fnz max: 0.68000000000000005 mm
• fnz min: 0.23999999999999999 mm
• fnz rec: 0.48999999999999999 mm
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: N123J1-0600-RM 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 25.16 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 2.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size J1
• Cutting direction (HAND): N
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): RM
• Grooving width, nominal dimension (CW): 6 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 120~135~170~32 m/min
• vc min: 100~110~140~26 m/min
• vc rec: 105~120~150~28 m/min
• Material classification level 1(TMC1): K~M~P~S
• Corner radius R: 3 mm
• Chipbreaker manufacturer designation CBM: RM
• Grade: 1125
• Recommended variety: M
• All ISO application areas: P|M|K
