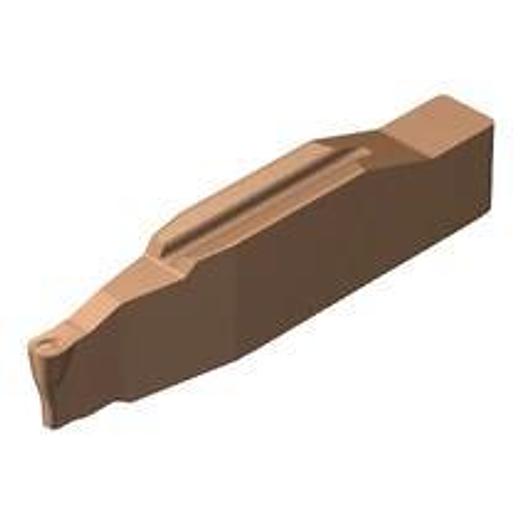

profile turning

SANDVIK COROCUT mold turning plate

• Application Area: TP
• Coating Process Type: PVD
• Corner radius (RE): 1.5 mm
• fnx max: 0.17999999999999999 mm/r
• fnx min: 0.10000000000000001 mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.41999999999999998 mm
• fnz min: 0.17999999999999999 mm
• fnz rec: 0.29999999999999999 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123F1-0300-RO 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 20.05 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.01 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 1.3 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size F1
• Cutting direction (HAND): N
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): RO
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.01 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 130~155~195 m/min
• vc min: 110~130~160 m/min
• vc rec: 120~140~170 m/min
• Material classification level 1(TMC1): K~M~P
• Corner radius R: 1.5 mm
• Chipbreaker manufacturer designation CBM: RO
• Grade: 1125
• All ISO application areas: P|M|K
