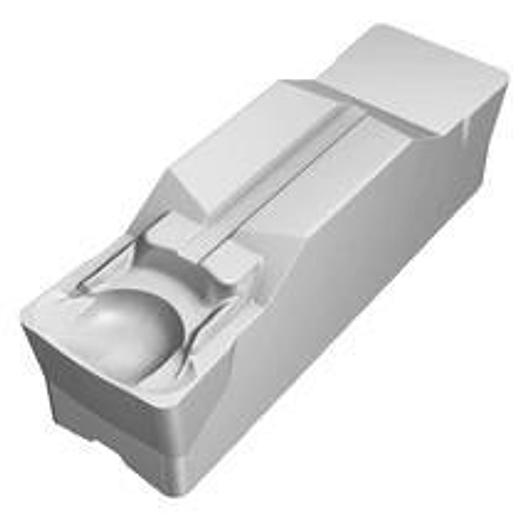

CoroCut® 1-2 cutting system for grooving

• Application Area: TP
• Coating Process Type: PVD

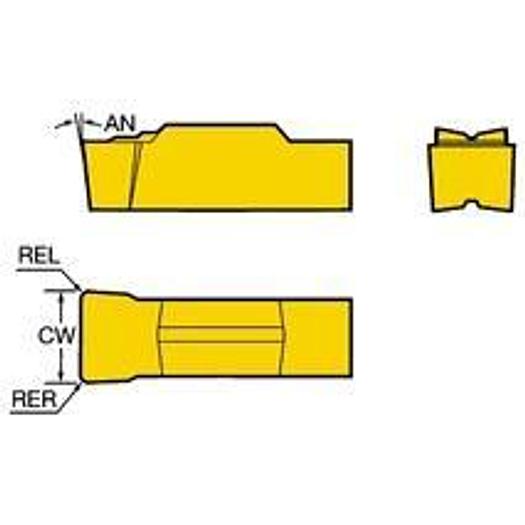

• Corner radius, left (REL): 0.8 mm
• Corner radius, right (RER): 0.8 mm
• fnx max: 0.40000000000000002 mm/r
• fnx min: 0.10000000000000001 mm/r
• fnx rec: 0.25 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: N123M1-0900-0008-GM 1105
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.03 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size M1
• Cutting direction (HAND): N
• Grade: 1105
• Chipbreaker, manufacturer designation (CBMD): GM
• Grooving width, nominal dimension (CW): 9 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.03 mm
• vc max: 195~80 m/min
• vc min: 125~37 m/min
• vc rec: 150~50 m/min
• Material classification level 1(TMC1): M~S
• Grooving width nominal dimension C: 9 mm
• Corner radius right RE: 0.8 °
• Grade: 1105
• All ISO application areas: M|S
• Recommended variety: S
