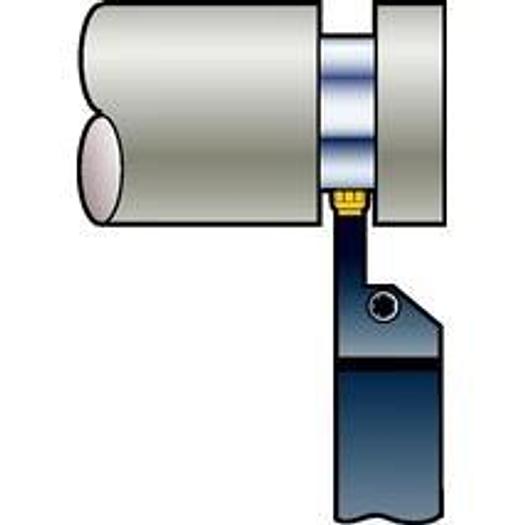

piercing

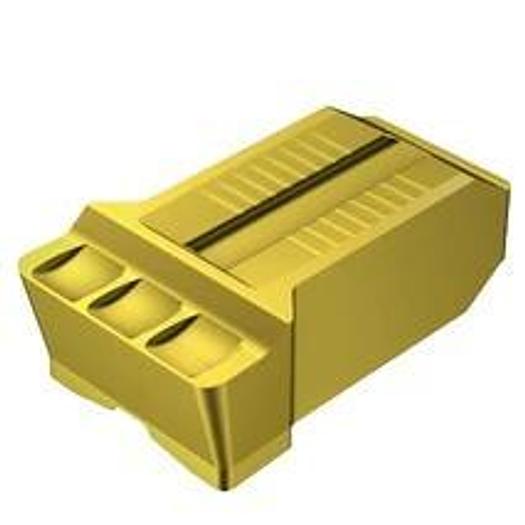

SANDVIK COROCUT parting inserts -GR

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 1.2 mm
• Corner radius, right (RER): 1.2 mm
• fnx max: 0.56000000000000005 mm/r
• fnx min: 0.20000000000000001 mm/r
• fnx rec: 0.34999999999999998 mm/r
• Main clearance angle (AN): 13 deg
• Manufacturer's ArtNo: N123R1-1500-0010-GR 2135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 25.4 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.08 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size R1
• Cutting direction (HAND): N
• Grade: 2135
• Chip breaker, manufacturer designation (CBMD): GR
• Grooving width, nominal dimension (CW): 15 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• Lower cutting width tolerance (CWTOLL): -0.08 mm
• vc max: 110~90 m/min
• vc min: 60~80 m/min
• vc rec: 70~90 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 15 mm
• Corner radius right RE: 1.2 °
• Grade: 2135
• All ISO application areas: P|M|S
• Recommended variety: M
