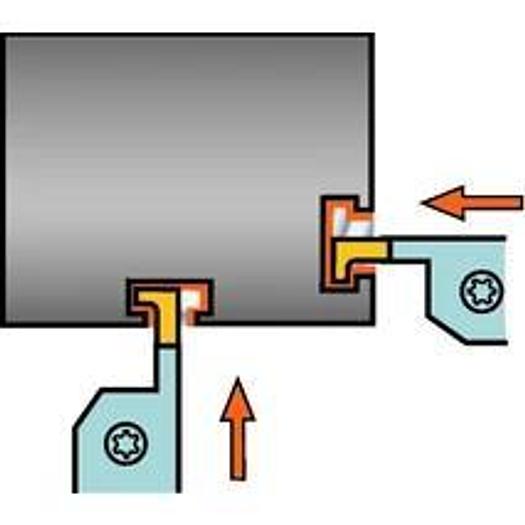

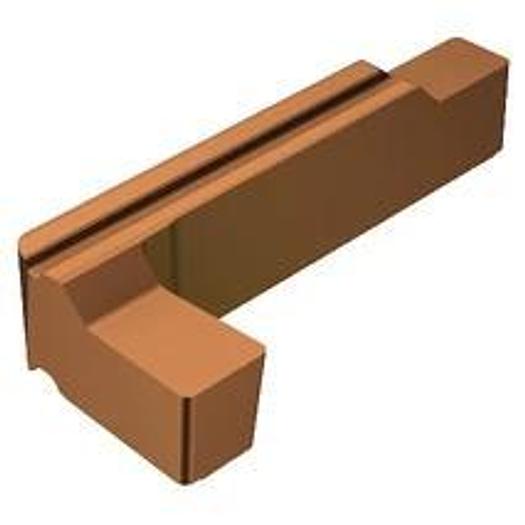

CoroCut® 1-2 cutting system for grooving

• Application Area: TP
• Axial cutting diameter, min.(DAXIN): 96 mm
• Bore diameter, min.(DMIN1): 44 mm
• Coating Process Type: PVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 0.10000000000000001 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: RG123H1-0400-0004-GS1115
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Body angle, machine side (BAMS): 90 deg
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size HX1
• Cutting direction (HAND): R
• Cutting depth, max.(CDX): 6 mm
• Grade: 1115
• Chip breaker, manufacturer's designation (CBMD): GS
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 245~60 m/min
• vc min: 170~40 m/min
• vc rec: 195~45 m/min
• Material classification level 1(TMC1): M~S
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.4 °
• Grade: 1115
• Recommended variety: M|S
• All ISO application areas: P|M|K|N|S
