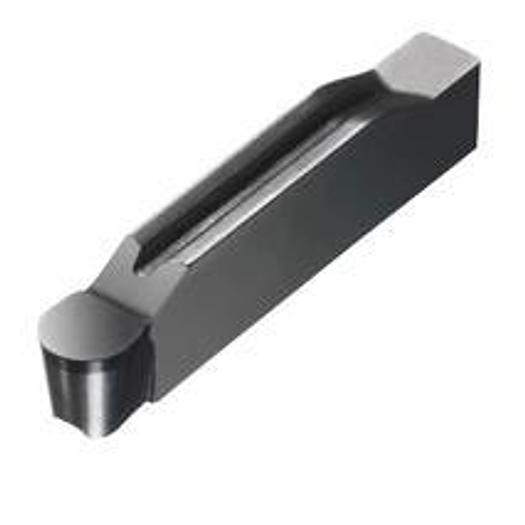

Profile turning in non-ferrous and hardened materials

CoroCut® 1-2 cutting system for profile turning

• Application Area: TP
• Corner radius (RE): 2.5 mm
• fnx max: 0.29999999999999999~8.0000000000000002E-2mm/r
• fnx min: 0.02~5.0000000000000003E-2mm/r
• fnx rec: 0.14999999999999999~2.99999999999999999E-2 mm/r
• fnz max: 0.28000000000000003~0.419999999999999998 mm
• fnz min: 7.0000000000000007E-2 mm
• fnz rec: 0.20999999999999999~0.23999999999999999 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123H1-0500-RE 7015
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BL
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 0.7 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H1
• Cutting direction (HAND): N
• Grade: 7015
• Chip breaker, manufacturer's designation (CBMD): RE
• Grooving width, nominal dimension (CW): 5 mm
• Substrate Type: CBN
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 150~350 m/min
• vc min: 140~250 m/min
• vc rec: 145~285 m/min
• Material classification level 1(TMC1): H~S
• Corner radius R: 2.5 mm
• Chipbreaker manufacturer designation CBM: RE
• Grade: 7015
• All ISO application areas: S|H
• Recommended variety: S|H
