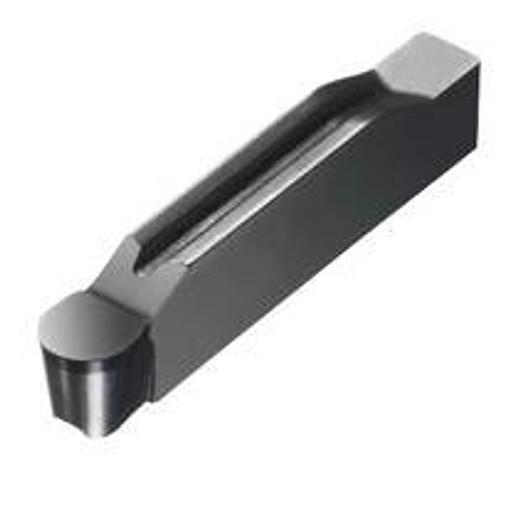

Profile turning in non-ferrous and hardened materials

CoroCut® 1-2 cutting system for profile turning

• Application Area: TP
• Corner radius (RE): 2 mm
• fnx max: 0.10000000000000001 mm/r
• fnx min: 0.02 mm/r
• fnx rec: 5.0000000000000003E-2 mm/r
• fnz max: 0.20000000000000001 mm
• fnz min: 5.0000000000000003E-2 mm
• fnz rec: 0.17000000000000001 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123H1-0400S01025 7015
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BL
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 3.4 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H1
• Cutting direction (HAND): N
• Grade: 7015
• Chip breaker, manufacturer designation (CBMD): S
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: CBN
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 150 m/min
• vc min: 135 m/min
• vc rec: 140 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 2 mm
• Chip breaker manufacturer designation CBM: S
• Grade: 7015
• Recommended variety: H
• All ISO application areas: H
