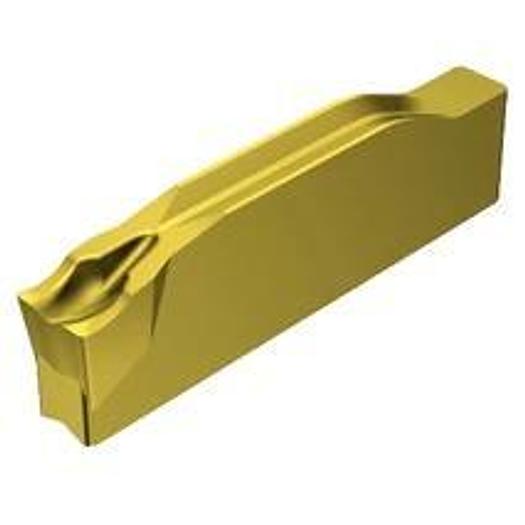

CoroCut® 1-2 cutting system for parting off

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.34999999999999998 mm/r
• fnx min: 0.11 mm/r
• fnx rec: 0.20000000000000001 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: N123J1-0500-0004-CR 2135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 24.58 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size J1
• Cutting direction (HAND): N
• Grade: 2135
• Chip breaker, manufacturer's designation (CBMD): CR
• Grooving width, nominal dimension (CW): 5 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 110~140~28 m/min
• vc min: 20~75~95 m/min
• vc rec: 110~23~85 m/min
• Material classification level 1 (TMC1): M~P~S
• Grooving width nominal dimension C: 5 mm
• Corner radius right RE: 0.4 °
• Grade: 2135
• All ISO application areas: P|M|K
• Recommended variety: M
