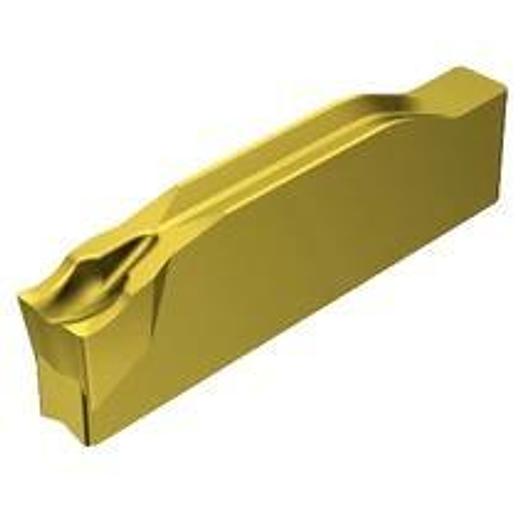

SANDVIK COROCUT parting inserts -CM

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 0.17000000000000001mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 0.10000000000000001~5.99999999999999998E-2mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123E1-0200-0002-CM 2135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 19.75 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size E1
• Cutting direction (HAND): N
• Grade: 2135
• Chip breaker, manufacturer designation (CBMD): CM
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 150~180~35 m/min
• vc min: 120~25~95 m/min
• vc rec: 115~140~28 m/min
• Material classification level 1 (TMC1): M~P~S
• Grooving width nominal dimension C: 2 mm
• Corner radius right RE: 0.2 °
• Grade: 2135
• All ISO application areas: P|M|S
• Recommended variety: P|M
