parting

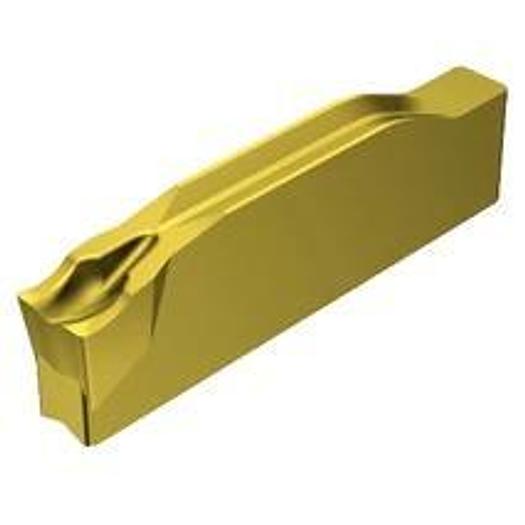

CoroCut® 1-2 cutting system for parting off

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 0.23999999999999999~0.299999999999999999 mm/r
• fnx min: 5.0000000000000003E-2~5.9999999999999998E-2~8.00000000000000|02E-2 mm/r
• fnx rec: 0.12~0.17999999999999999 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123H1-0400-0002-CM 2135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 24.92 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size H1
• Cutting direction (HAND): N
• Grade: 2135
• Chip breaker, manufacturer designation (CBMD): CM
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 125~180~33 m/min
• vc min: 105~22~80 m/min
• vc rec: 130~26~95 m/min
• Material classification level 1 (TMC1): M~P~S
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.2 °
• Grade: 2135
• All ISO application areas: P|M|S
• Recommended variety: P|M
