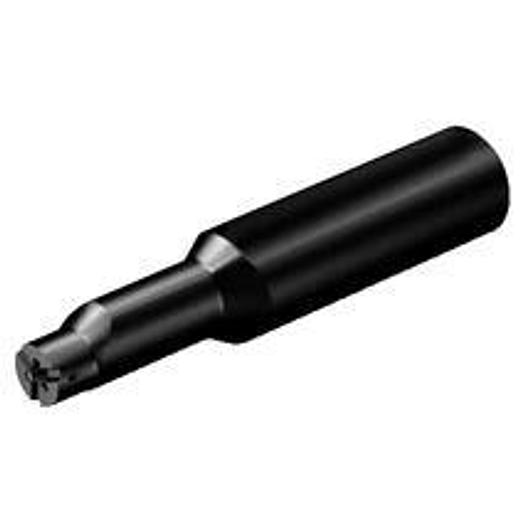

CoroCut MB boring bars

Cylindrical shank with flat for CoroCut® MB adapter

• Adapter interface machine direction(ADINTMS): Cylindrical shank w/ 3 flats -inch: 1/2
• DCONMS: 12.7 mm
• DCONWS: 7 mm
• Torque (TQ): 1.4 Nm
• Functional width (WF): 7.4 mm
• Functional length (LF): 111.2 mm
• Manufacturer's ArtNo: MB-E0500-19-07
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 7.4 mm
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 44 mm
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 48 mm
• Minimum cantilever length (OHN): 46 mm
• Axial runout setting (ADINTWS): CoroCut MB -size 07
• Shaft height (H): 11.7 mm
• Cutting direction (HAND): N
• Tool design (BMC): Carbide
• Length Body Diameter 1 LB: 44 mm
• Axial runout setting ADINTW: CoroCut MB -size 07
• Adapter interface machine direction ADINTM: Cylindrical shank w/ 3 flats -inch: 1/2
• Functional length L: 111.2 mm
