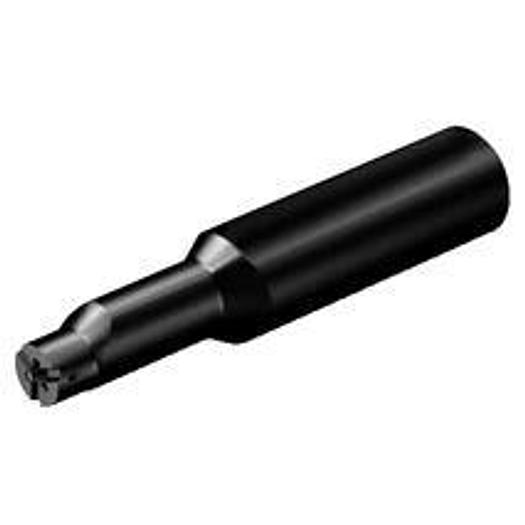

CoroCut MB boring bars

Cylindrical shank for CoroCut® MB adapter

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 5/8
• DCONMS: 15,875 mm
• DCONWS: 9 mm
• Position Assist Property (LOCAP): 1
• Functional length (LF): 134.8 mm
• Manufacturer's ArtNo: MB-E0625-29-09R
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Body diameter (BD): 11 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 69.8 mm
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 75.6 mm
• Minimum cantilever length (OHN): 75.6 mm
• Axial runout setting (ADINTWS): CoroCut MB -size 09
• Cutting direction (HAND): N
• Tool design (BMC): Carbide
• Axial runout setting ADINTW: CoroCut MB -size 09
• Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -inch: 5/8
• Functional length L: 134.8 mm
• Length Body Diameter 1 LB: 69.8 mm
