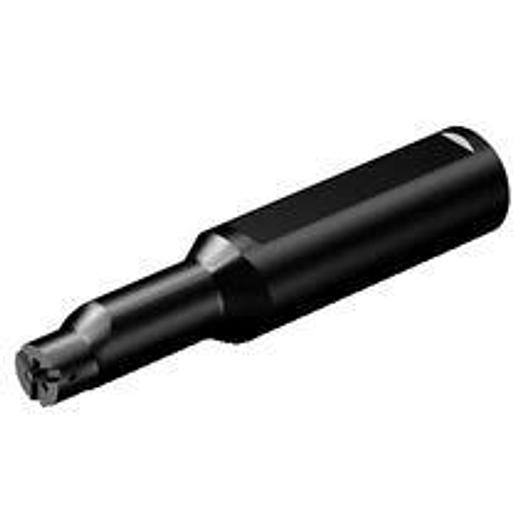

CoroCut MB boring bars

Cylindrical shank with flat for CoroCut® MB adapter

• Adapter interface machine direction(ADINTMS): Cylindrical shank w/ 3 flats -inch: 5/8
• DCONMS: 15,875 mm
• DCONWS: 9 mm
• Torque (TQ): 3 Nm
• Functional width (WF): 10 mm
• Functional length (LF): 94.7 mm
• Manufacturer's ArtNo: MB-A0625-08-09
• Manufacturer: SANDVIK COROMANT
• IC Code: 19165
• Body diameter (BD): 10 mm
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 14.7 mm
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 18 mm
• Minimum cantilever length (OHN): 18 mm
• Axial runout setting (ADINTWS): CoroCut MB -size 09
• Shaft height (H): 14.9 mm
• Cutting direction (HAND): N
• Tool design (BMC): Steel
• Length Body Diameter 1 LB: 14.7 mm
• Axial runout setting ADINTW: CoroCut MB -size 09
• Adapter interface machine direction ADINTM: Cylindrical shank w/ 3 flats -inch: 5/8
• Functional length L: 94.7 mm
