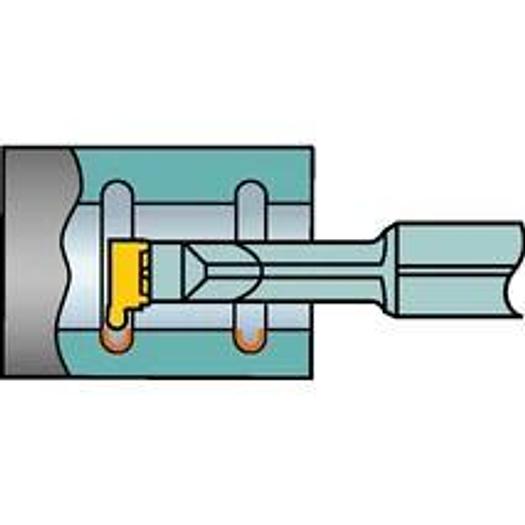

CoroCut MB inserts - profile machining and pre-grooving and chamfering

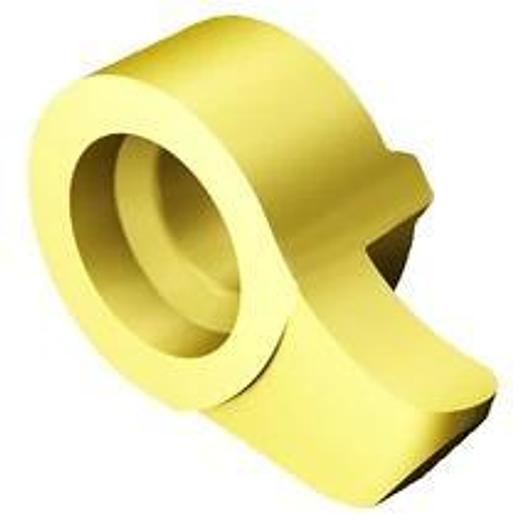

CoroCut® MB solid carbide cutting head for form turning

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 07
• Application Area: TP
• Bore diameter, min.(DMIN1): 10 mm
• Coating Process Type: PVD
• DCONMS: 7 mm
• Corner radius (RE): 0.9 mm
• fnx max: 0.02 mm/r
• fnx min: 0.02 mm/r
• fnx rec: 0.02 mm/r
• Functional width (WF): 5.8 mm
• Functional length (LF): 3.9 mm
• Manufacturer item number: MB-07R180-09-10L 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 3.9 mm
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 1.8 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 1.8 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.02 mm
• vc max: 235~285~60 m/min
• vc min: 200~240~50 m/min
• vc rec: 215~255~55 m/min
• Material classification level 1 (TMC1): M~P~S
• Bore diameter min DMIN: 10 mm
• Mounting diameter: 7 mm
• All ISO application areas: P|M|N|S
• Recommended variety: P|M|N|S
