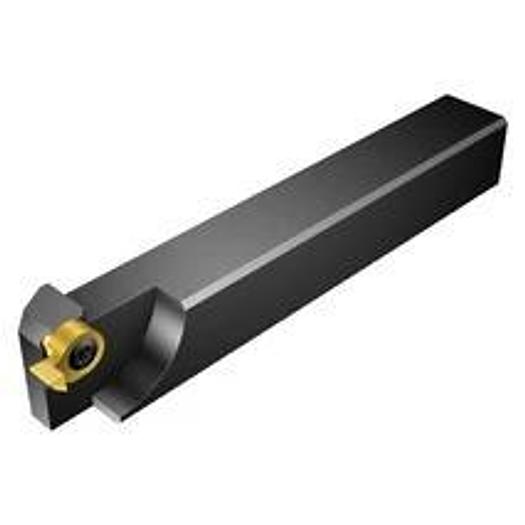

CoroCut MB shank tools

Adapter rectangular shaft - CoroCut® MB

• Adapter interface machine direction(ADINTMS): Rectangular shank -inch: 1/2 x 1/2
• DCONWS: 9 mm
• Torque (TQ): 3 Nm
• Functional width (WF): 15.8 mm
• Functional height (HF): 12.7 mm
• Functional length (LF): 95.5 mm
• Manufacturer's ArtNo: MBG-08A-09L
• Manufacturer: SANDVIK COROMANT
• IC Code: 14005
• Body angle, workpiece side (BAWS): 90 deg
• cantilever length (LPR): 100 mm
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 20 mm
• Axial runout setting (ADINTWS): CoroCut MB -size 09
• Shaft width (B): 12.7 mm
• Shaft height (H): 12.7 mm
• Cutting direction (HAND): L
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Rectangular shank -inch: 1/2 x 1/2
• Functional length L: 95.5 mm
• Mounting diameter DCONWS: 9 mm
• Axial runout setting ADINTW: CoroCut MB -size 09
