CoroCut MB inserts - longitudinal and profile turning

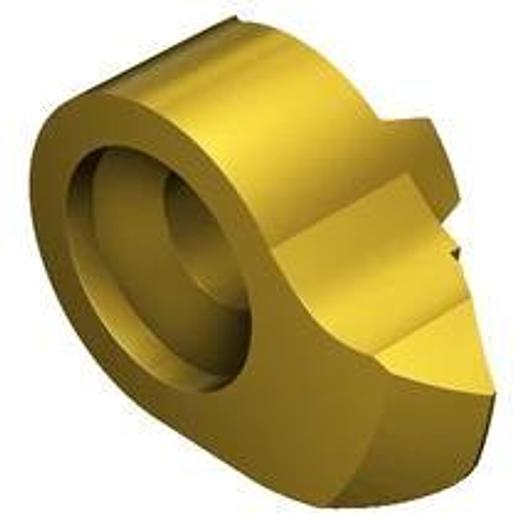

CoroCut® MB solid carbide cutting head for turning

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 07
• ap max: 1 mm
• ap min: 5.0000000000000003E-2mm
• ap rec: 0.5 mm
• Application Area: TU
• Bore diameter, min.(DMIN1): 10 mm
• Coating Process Type: PVD
• DCONMS: 7 mm
• Corner radius (RE): 0.2 mm
• Setting angle (KAPR): 93 deg

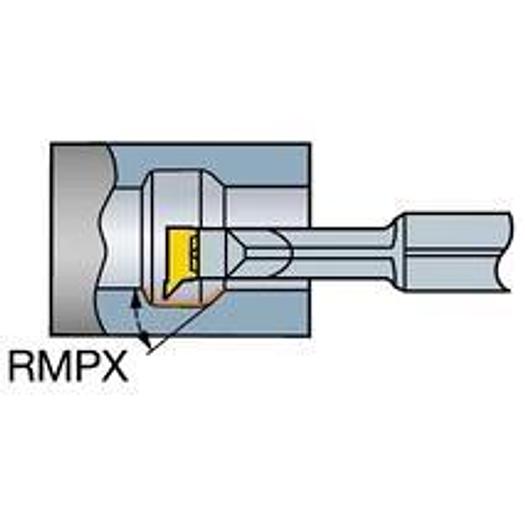

• Immersion angle, max.(RMPX): 15 deg
• fn max: 0.10000000000000001mm/r
• fn min: 0.02 mm/r
• fn rec: 4.0000000000000001E-2 mm/r
• Functional width (WF): 5.6 mm
• Functional length (LF): 3.9 mm
• Main cutting edge angle (PSIR): -3 deg
• Manufacturer's ArtNo: MB-07T093-02-10R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 3.9 mm
• Cutting length, max. (APMX): 1.8 mm
• Cutting direction (HAND): R
• Grade: 1025
• Substrate Type: WC
• TMC Order: 1~2~3~4
• vc max: 215~255~55~930 m/min
• vc min: 125~150~32~95 m/min
• vc rec: 170~205~45~750 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Tool design (BMC): Carbide
• Bore diameter min DMIN: 10 mm
• Mounting diameter: 7 mm
• All ISO application areas: P|M|N|S
