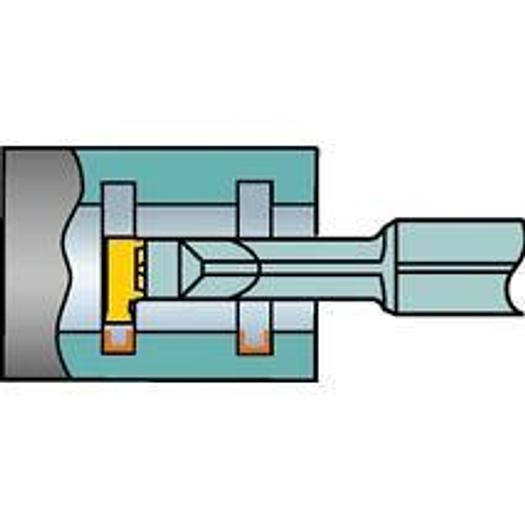

CoroCut MB inserts - grooving

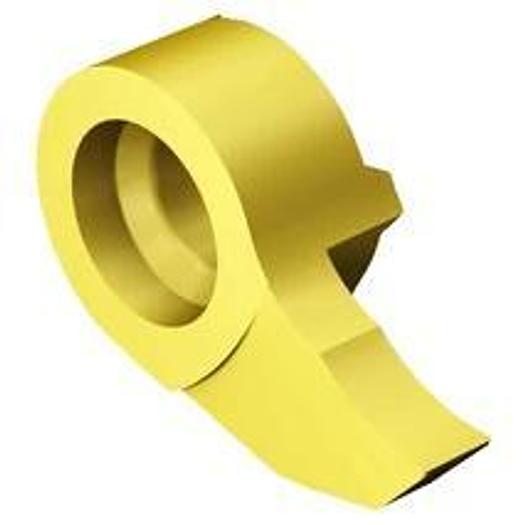

CoroCut® MB solid carbide cutting head for grooving

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 09
• Bore diameter, min.(DMIN1): 14 mm
• Coating Process Type: PVD
• DCONMS: 9 mm
• Corner chamfer width, left (CHWL): 0.04 mm
• Corner chamfer width, right (CHWR): 0.04 mm
• Functional width (WF): 9 mm
• Functional length (LF): 5.3 mm
• Manufacturer item number: MB-09G318-00-14L 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 5.3 mm
• Upper cutting width tolerance (CWTOLU): 0.03 mm
• Cutting direction (HAND): L
• Cutting depth, max.(CDX): 4 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 3.18 mm
• Substrate Type: WC
• Grooving width nominal dimension C: 3.18 mm
• Bore diameter min DMIN: 14 mm
• All ISO application areas: P|M|K|N|S
