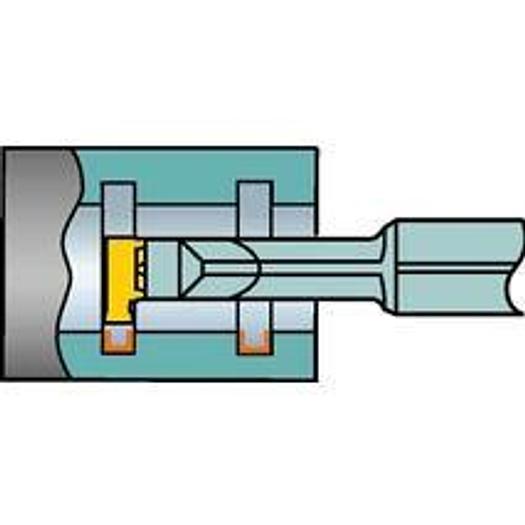

CoroCut MB inserts - grooving

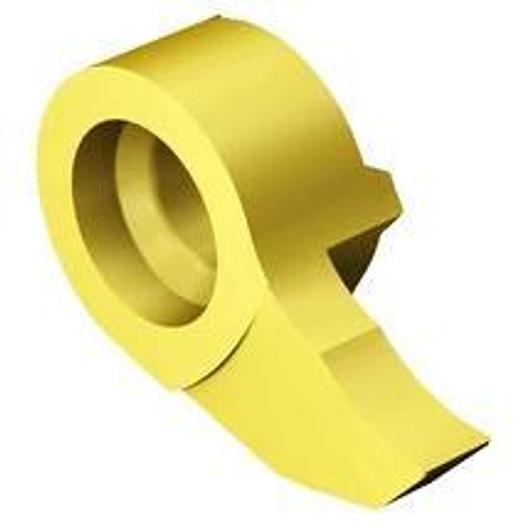

CoroCut® MB solid carbide cutting head for grooving

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 09
• Bore diameter, min.(DMIN1): 16 mm
• Coating Process Type: PVD
• DCONMS: 9 mm
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• Functional width (WF): 9 mm
• Functional length (LF): 5.3 mm
• Manufacturer item number: MB-09G150-02-16R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 5.3 mm
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.03 mm
• Cutting direction (HAND): R
• Cutting depth, max.(CDX): 4 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 1.5 mm
• Substrate Type: WC
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Grooving width nominal dimension C: 1.5 mm
• Bore diameter min DMIN: 16 mm
• All ISO application areas: P|M|K|N|S
