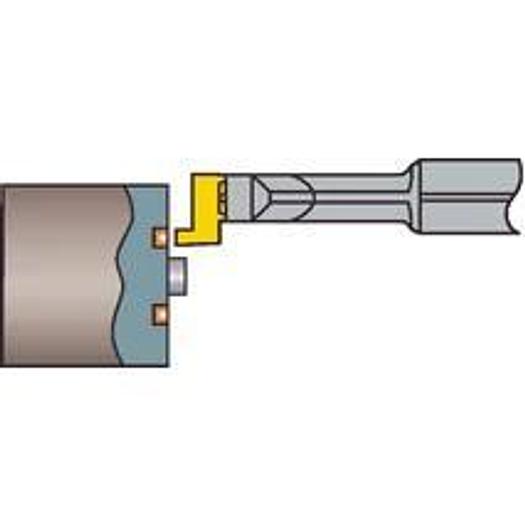

CoroCut MB inserts - axial grooving

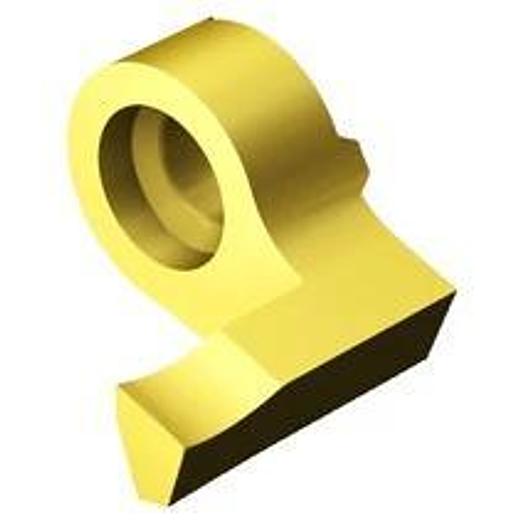

CoroCut® MB solid carbide cutting head for axial grooving

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 09
• Application Area: TP

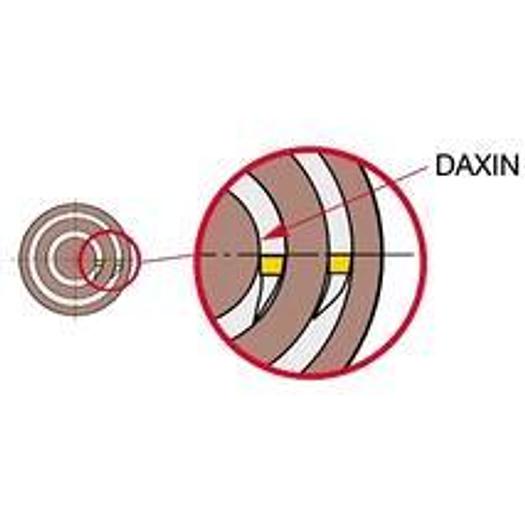

• Axial penetration diameter, min.(DAXIN): 7 mm
• Axial insert support, alignment (AXGSUP): 2
• Coating Process Type: PVD
• DCONMS: 9 mm
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 2.9999999999999999E-2mm/r
• fnx min: 0.02 mm/r
• fnx rec: 0.02 mm/r
• Functional width (WF): 8.5 mm
• Functional length (LF): 10.3 mm
• Manufacturer's ArtNo: MB-09FB250-02-14L 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 10.3 mm
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting direction (HAND): L
• Cutting depth, max.(CDX): 5 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 2.5 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4~5
• Lower corner radius tolerance (RETOLL): -0.02 mm
• vc max: 170~1900~220~260~55m/min
• vc min: 155~190~200~235~50m/min
• vc rec: 1500~160~205~245~50m/min
• Material classification level 1(TMC1): K~M~N~P~S
• Grooving width nominal dimension C: 2.5 mm
• Recommended variety: P|M|N|S
• All ISO application areas: P|M|N|S
