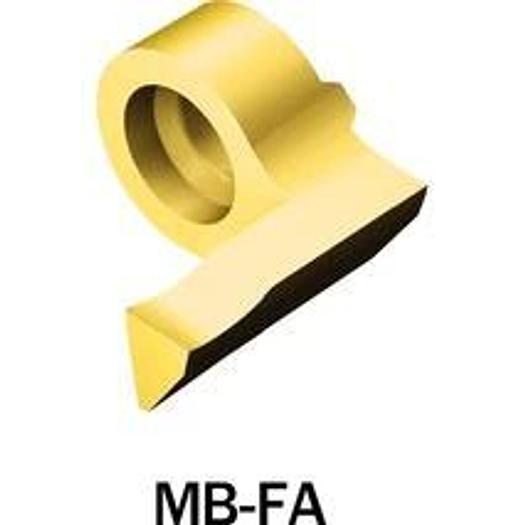

CoroCut MB inserts - axial grooving

SANDVIK CoroCut MB solid carbide cutting head

• ISO application scope K: K
• ISO scope N: N
• ISO scope S: S
• Insert shape: MB-*FA
• insert clearance angle: 2°
• variety code: 1025
• Corner radius RE: ,2 mm
• Manufacturer: SANDVIK COROMANT

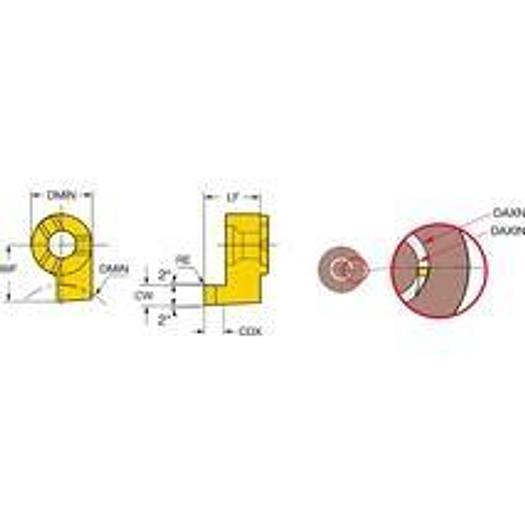

• Max. cutting depth: CDX = 5.00 mm
• Other versions: DAXIN = 7.60 mm / OHX = 10.30 mm / OHN = 10.30 mm / LF =10.30 mm / WF = 9.00 mm
• eClass-5.1: 21011901
• Size of insert / insert seat: 9
• ISO scope M: M
• ISO scope P: P
• Grade type: carbide
• Insert design: left
• Insert type: CoroCut MB
• All ISO application areas: P|M|K|N|S|O
• Number of cutting edges: 1
• Suitable for which processing?: Axial grooving, Form-A
• Non ISO O: O
• Grooving width/pitch: CW = 3.18 mm
