CoroCut MB inserts - axial grooving

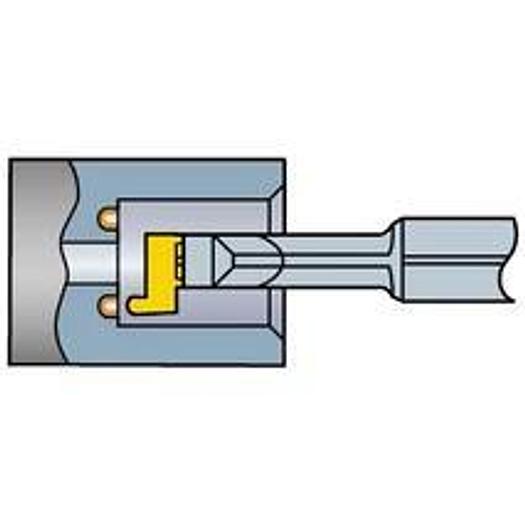

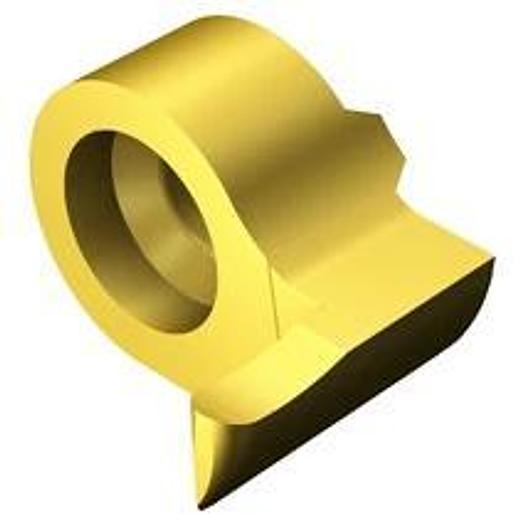

CoroCut® MB solid carbide cutting head for axial grooving

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 09

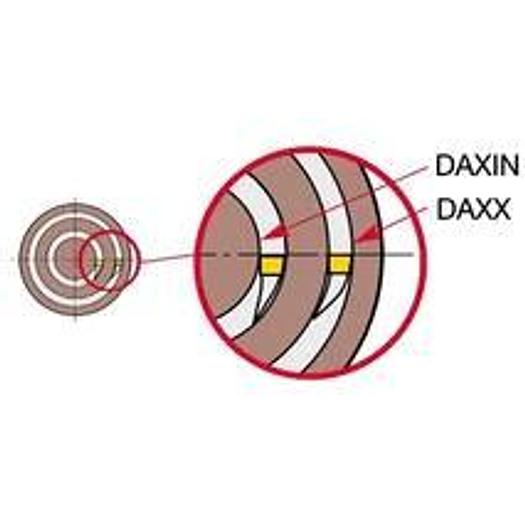

• Axial penetration diameter, min.(DAXIN): 11 mm
• Axial insert support, alignment (AXGSUP): 1
• Coating Process Type: PVD
• DCONMS: 9 mm
• Corner radius, left (REL): 0.75 mm
• Corner radius, right (RER): 0.75 mm
• Functional width (WF): 9 mm
• Functional length (LF): 8.3 mm
• Manufacturer's ArtNo: MB-09FAR150-075-14R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 8.3 mm
• Minimum cantilever length (OHN): 8.3 mm
• Upper corner radius tolerance (RETOLU): 0.015 mm
• Upper cutting width tolerance (CWTOLU): 0.03 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 2.5 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 1.5 mm
• Substrate Type: WC
• Grooving width nominal dimension C: 1.5 mm
• All ISO application areas: P|M|K|N|S|O
