CoroCut MB inserts - axial grooving

SANDVIK CoroCut MB solid carbide cutting head

• Corner radius RE: ,2 mm
• Manufacturer: SANDVIK COROMANT
• ISO application scope K: K
• Insert design: right

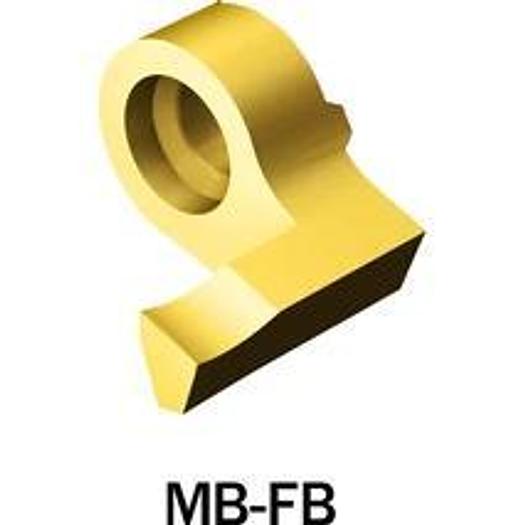

• Insert shape: MB-*FB
• eClass-5.1: 21011901
• variety code: 1025
• ISO scope N: N
• ISO scope P: P

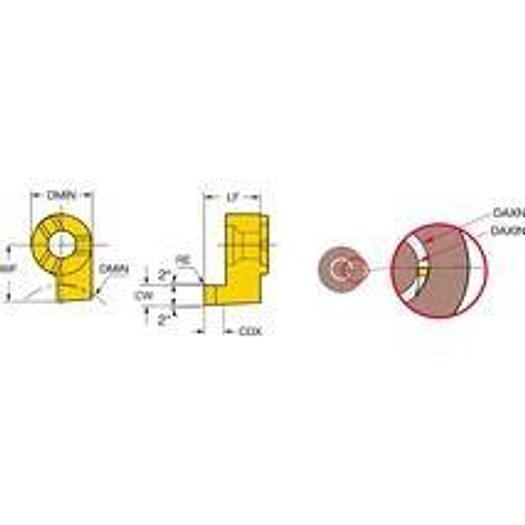

• Other versions: DAXIN = 5.60 mm / OHX = 10.30 mm / OHN = 10.30 mm / LF =10.30 mm / WF = 9.20 mm
• Suitable for which processing?: Axial grooving, Form-B
• ISO scope M: M
• Non ISO O: O
• Grooving width/pitch: CW = 3.18 mm
• insert clearance angle: 2°
• All ISO application areas: P|M|K|N|S|O
• Number of cutting edges: 1
• Size of insert / insert seat: 9
• Max. cutting depth: CDX = 5.00 mm
• Grade type: carbide
• Insert type: CoroCut MB
• ISO scope S: S
