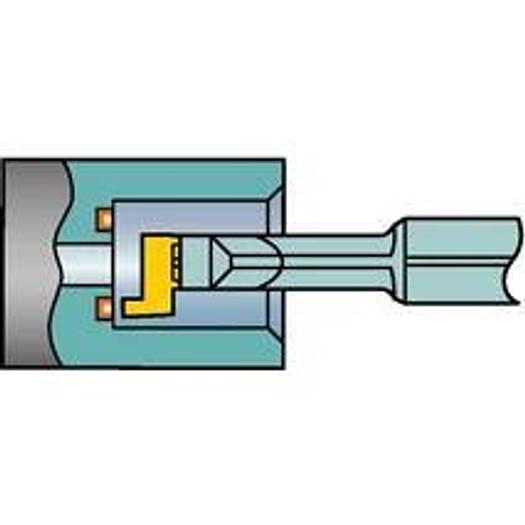

CoroCut MB inserts - axial grooving

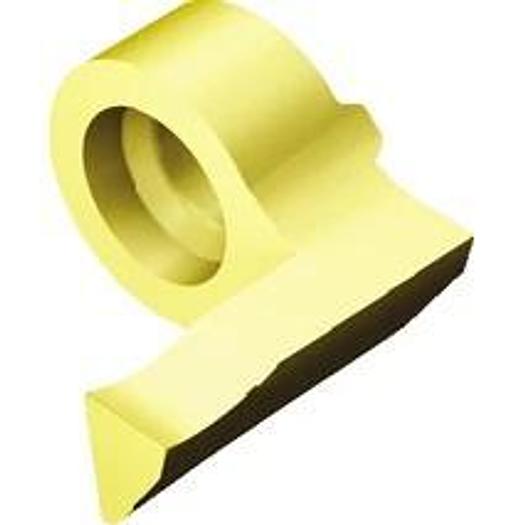

CoroCut® MB solid carbide cutting head for axial grooving

• Adapter interface machine direction (ADINTMS): CoroCut MB -size 09
• Application Area: TP

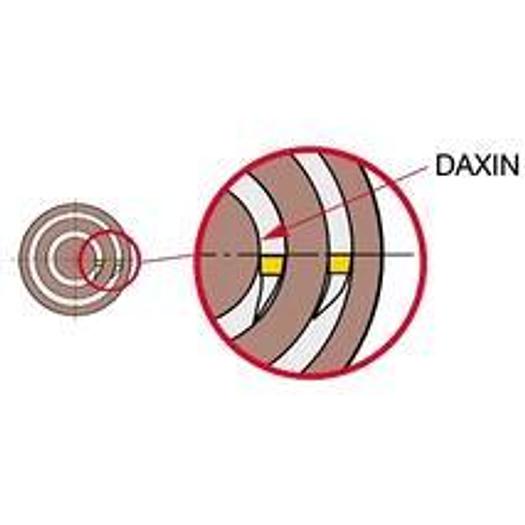

• Axial penetration diameter, min.(DAXIN): 12 mm
• Axial insert support, alignment (AXGSUP): 1
• Coating Process Type: PVD
• DCONMS: 9 mm
• fnx max: 0.02 mm/r
• fnx min: 0.01 mm/r
• fnx rec: 0.01 mm/r
• Functional width (WF): 9 mm
• Functional length (LF): 8.3 mm
• Manufacturer item number: MB-09FA100-00-14L 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 8.3 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 1.5 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 1 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4~5
• vc max: 1900~205~270~325~70m/min
• vc min: 170~190~215~260~55m/min
• vc rec: 1500~180~235~280~60m/min
• Material classification level 1(TMC1): K~M~N~P~S
• Grooving width nominal dimension C: 1 mm
• All ISO application areas: P|M|N|S
• Recommended variety: P|M|N|S
