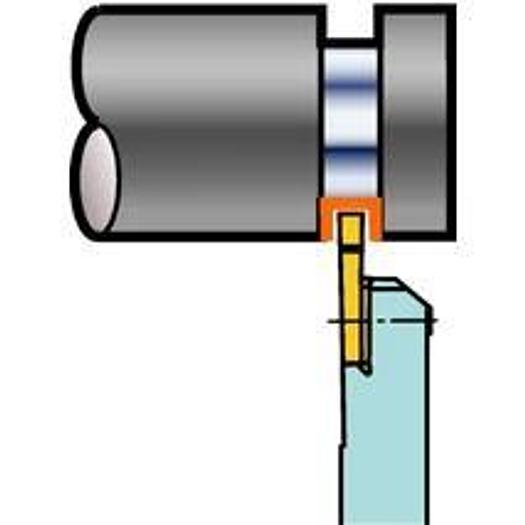

CoroCut XS cutting inserts - profile turning

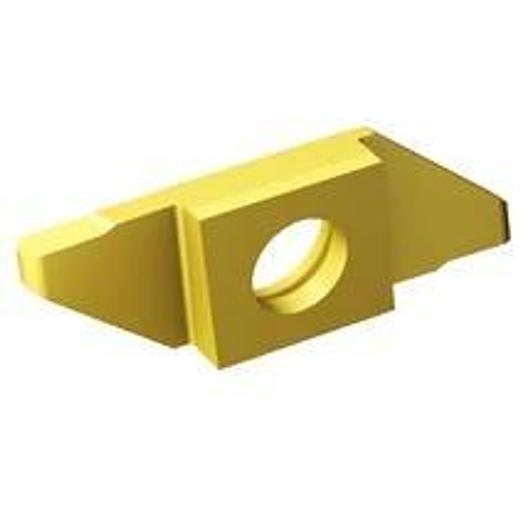

CoroCut® XS indexable inserts for profile turning

• Coating Process Type: PVD
• Corner radius (RE): 1.25 mm
• Main clearance angle (AN): 6 deg
• Manufacturer's ArtNo: MAPL 3 250 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.025 mm
• Upper cutting width tolerance (CWTOLU): 0.025 mm
• Cutting length, max. (APMX): 4 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3L
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 7.5 mm
• Grade: 1025
• Chip breaker, manufacturer designation (CBMD): MAP
• Grooving width, nominal dimension (CW): 2.5 mm
• Substrate Type: WC
• Lower corner radius tolerance (RETOLL): -0.025 mm
• Lower cutting width tolerance (CWTOLL): -0.025 mm
• Corner radius R: 1.25 mm
• Chipbreaker manufacturer designation CBM: MAP
• Grade: 1025
• All ISO application areas: P|M|K|N|S
