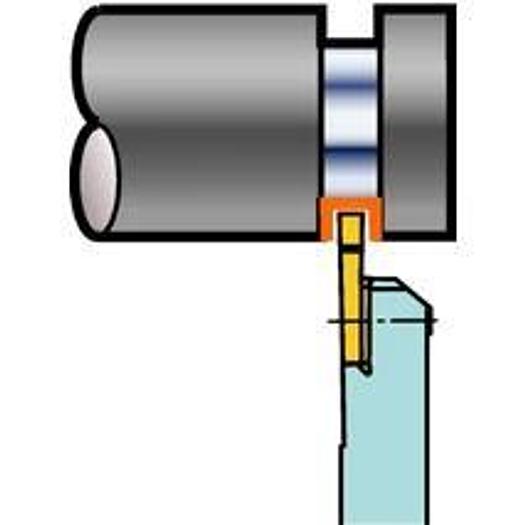

CoroCut XS inserts - grooving

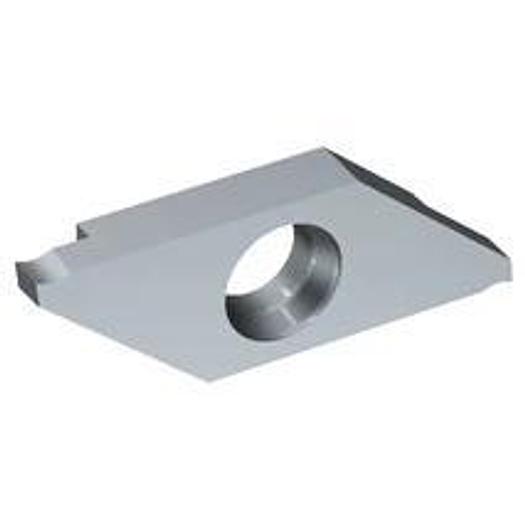

CoroCut® XS indexable insert for grooving

• Application Area: TP
• Corner radius, left (REL): 0.05 mm
• Corner radius, right (RER): 0.05 mm
• fnx max: 0.10000000000000001 mm/r
• fnx min: 0.02 mm/r
• fnx rec: 5.9999999999999998E-2 mm/r
• Main clearance angle (AN): 6 deg
• Manufacturer's ArtNo: MAGL 3 100 H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.025 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3L
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 2.7 mm
• Grade: H13A
• Chip breaker, manufacturer's designation (CBMD): MAG
• Grooving width, nominal dimension (CW): 1 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): -0.025 mm
• vc max: 105~1900~25 m/min
• vc min: 17~190~80 m/min
• vc rec: 1500~20~90 m/min
• Material classification level 1(TMC1): M~N~S
• Grooving width nominal dimension C: 1 mm
• Corner radius right RE: 0.05 °
• Grade: H13A
• All ISO application areas: K|N|S
