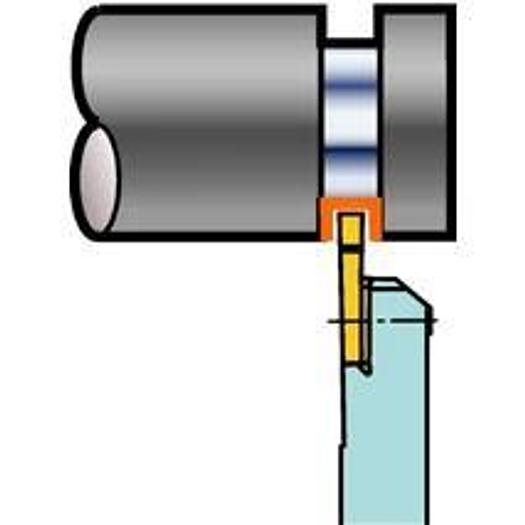

CoroCut XS inserts - grooving

CoroCut® XS indexable insert for grooving

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.05 mm
• Corner radius, right (RER): 0.05 mm
• fnx max: 0.13 mm/r
• fnx min: 0.02 mm/r
• fnx rec: 8.0000000000000002E-2 mm/r
• Main clearance angle (AN): 6 deg
• Manufacturer's ArtNo: MAGL 3 150 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.025 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3L
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 3.7 mm
• Grade: 1025
• Chip breaker, manufacturer's designation (CBMD): MAG
• Grooving width, nominal dimension (CW): 1.5 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): -0.025 mm
• vc max: 1900~215~260~55 m/min
• vc min: 115~140~190~29 m/min
• vc rec: 150~1500~180~38 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Grooving width nominal dimension C: 1.5 mm
• Corner radius right RE: 0.05 °
• Grade: 1025
• All ISO application areas: P|M|K|N|S
