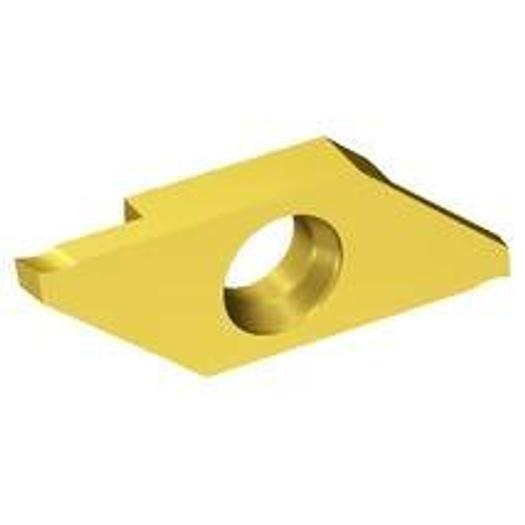

CoroCut XS inserts - parting

CoroCut® XS parting insert

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.05 mm
• Corner radius, right (RER): 0.05 mm
• fnx max: 0.14000000000000001mm/r
• fnx min: 2.9999999999999999E-2 mm/r
• fnx rec: 8.0000000000000002E-2 mm/r
• Main clearance angle (AN): 6 deg
• Main cutting edge angle, right (PSIRR): 15 deg
• Manufacturer's article number: MACR 3 200-R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.03 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3R
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 8.5 mm
• Grade: 1025
• Chip breaker, manufacturer designation (CBMD): MAC
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.03 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 190~1900~225~45 m/min
• vc min: 115~135~190~29 m/min
• vc rec: 140~1500~165~35 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Grooving width nominal dimension C: 2 mm
• Grade: 1025
• Corner radius right RE: 0.05 °
• All ISO application areas: P|M|K|N|S
