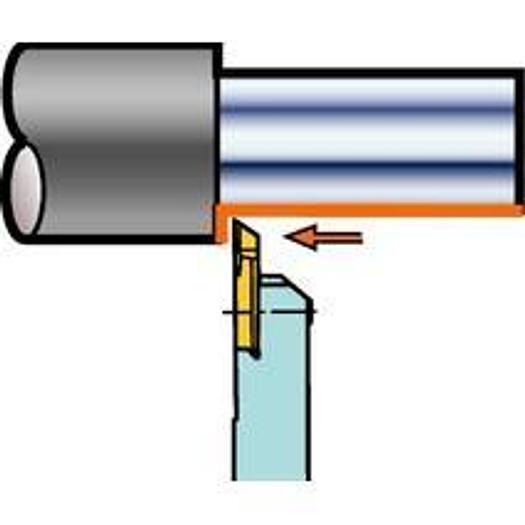

CoroCut XS inserts - longitudinal and back turning

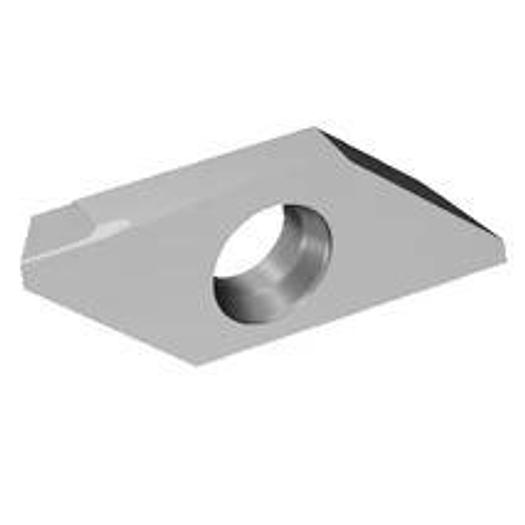

CoroCut® XS indexable insert for turning

• ap max: 1~1.5~3 mm
• ap min: 0.10000000000000001~0.20000000000000001~5.0000000000000003E-|2 mm
• ap rec: 0.59999999999999998~0.75~1.5mm
• Application Area: TU
• Corner radius (RE): 0.03 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fn max: 0.14000000000000001~5.0000000000000003E-2~8.0000000000000002|E-2 mm/r
• fn min: 0.01 mm/r
• fn rec: 2.9999999999999999E-2~5.99999999999999998E-2 mm/r
• Main clearance angle (AN): 6 deg
• Manufacturer's ArtNo: MAFR 3 003 H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Life Cycle Status (LCS): 20
• Number of cutting edges (CEDC): 2
• Cutting length, max. (APMX): 4 mm
• Cutting edge height (S): 3.175 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3R
• Cutting direction (HAND): R
• Grade: H13A
• SSC: 3
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 2400~38~65 m/min
• vc min: 240~38~65 m/min
• vc rec: 1900~38~65 m/min
• Material classification level 1(TMC1): M~N~S
• Grade: H13A
• All ISO application areas: K|N|S
