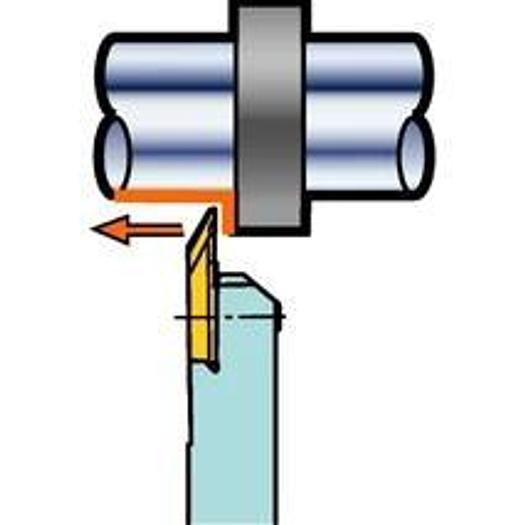

CoroCut XS inserts - longitudinal and back turning
CoroCut XS inserts - longitudinal and back turning
$100 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description

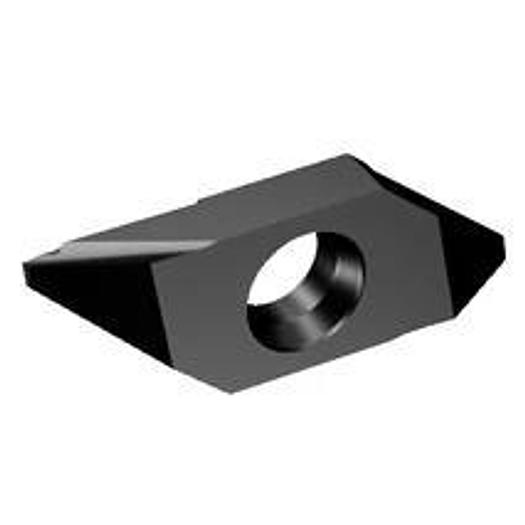

CoroCut® XS indexable insert for turning
- ap max: 1.5~3 mm
- ap min: 0.10000000000000001~5.0000000000000003E-2mm
- ap rec: 0.69999999999999996~1.3999999999999999 mm
- Application Area: TU
- Coating Process Type: PVD
- Corner radius (RE): 0.2 mm
- Setting angle, main cutting edge (KRINS): 59 deg
- fn max: 5.0000000000000003E-2~8.99999999999999997E-2mm/r
- fn min: 0.01 mm/r
- fn rec: 2.9999999999999999E-2~5.0000000000000003E-2 mm/r
- Main clearance angle (AN): 6 deg
- Manufacturer's ArtNo: MABL 3 020 1105
- Manufacturer: SANDVIK COROMANT
- IC Code: 18000
- ISO Cutting Tool Material: HC
- Life Cycle Status (LCS): 20
- Number of cutting edges (CEDC): 2
- Cutting length, max. (APMX): 4 mm

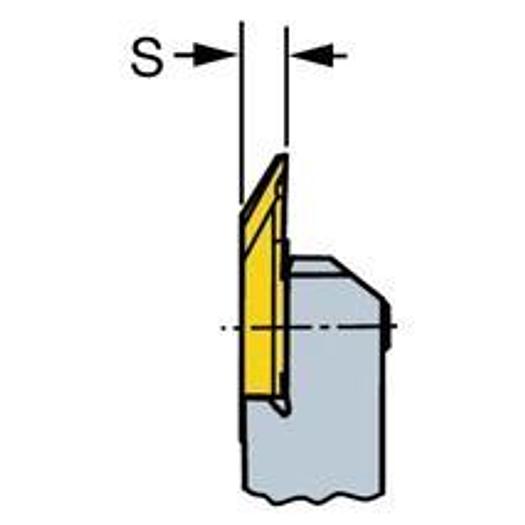

- Cutting edge height (S): 3.175 mm
- Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut XS -size 3L
- Cutting direction (HAND): L
- Grade: 1105
- SSC: 3
- Substrate Type: WC
- TMC Order: 1~2
- vc max: 395~50 m/min
- vc min: 385~50 m/min
- vc rec: 395~50 m/min
- Material classification level 1(TMC1): M~S
- Grade: 1105
- All ISO application areas: P|M|K|N|S
Specifications
Manufacturer | SANDVIK COROMANT |
Model | MABL30201105 |
Year | 2024 |
Condition | New |
Serial Number | 520 MABL 3 020 1105 |
Stock Number | . |
