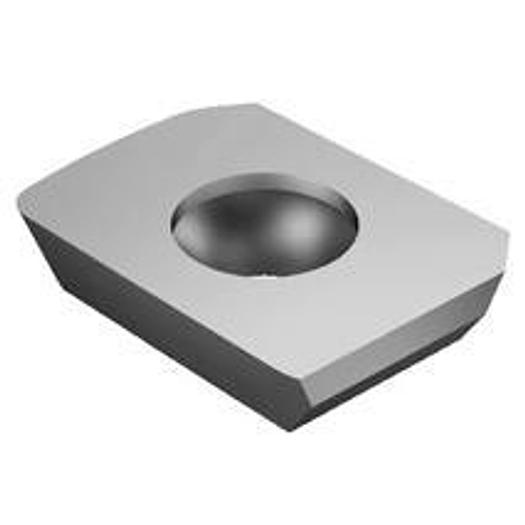

indexable inserts for Coromant shell end mills

T-Max® indexable insert for shell end milling

• Coating Process Type: PVD
• Corner radius (RE): 1.6 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• Manufacturer item number: LEHT 18 04 16R-PL2 1130
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 19 mm
• Cutting edge height (S): 4.7498 mm
• Cutting plate width (W1): 13,716 mm
• Cutting insert shape (SC): L
• Cutting insert size and shape (CUTINT_SIZESHAPE): LE1804
• Cutting direction (HAND): R
• Grade: 1130
• Chip breaker, manufacturer designation (CBMD): PL
• Substrate Type: WC
• Corner radius R: 1.6 mm
• Cutting plate width W: 13,716 mm
• Grade: 1130
• All ISO application areas: P|M|N|S|H
