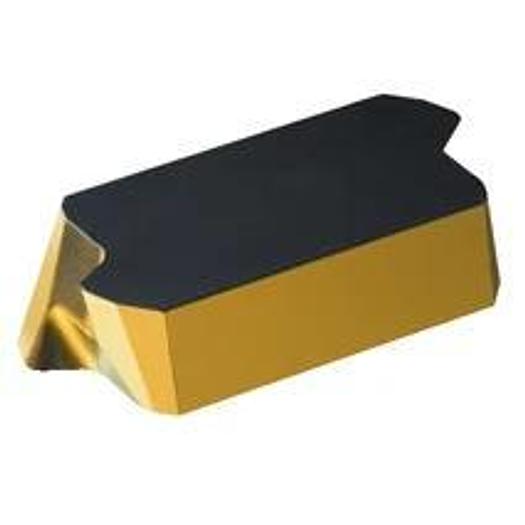

Indexable inserts for face milling cutters T-MAX 45 for heavy machining

T-Max® 45 indexable insert for milling

• Application Area: MU
• Coating Process Type: CVD

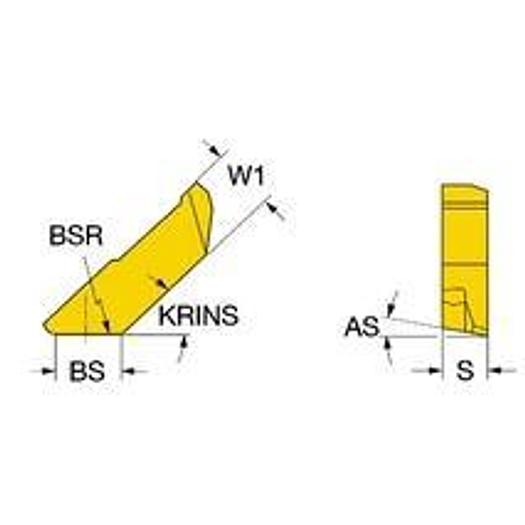

• Setting angle, main cutting edge (KRINS): 44 deg
• fz max: 1.01 mm
• fz min: 0.10000000000000001 mm
• fz rec: 0.35999999999999999 mm
• Manufacturer item number: LNCX 18 06 AZ R-11 4230
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 125 mm
• Cutting edge width (BS): 2 mm
• Cutting length, limited (LE): 18.77 mm
• Cutting length, max. (APMX): 12 mm
• Cutting edge height (S): 6.4 mm
• Cutting plate width (W1): 10 mm
• Cutting insert shape (SC): L
• Cutting insert size and shape (CUTINT_SIZESHAPE): Mill 45 -LN 1806AZ-11/31
• Cutting direction (HAND): R
• Grade: 4230
• Substrate Type: WC
• TMC Order: 1~2
• vc max: 200~300 m/min
• vc min: 55~85 m/min
• vc rec: 140~210 m/min
• Material classification level 1(TMC1): K~P
• Cutting plate width W: 10 mm
• Grade: 4230
• All ISO application areas: P|K
