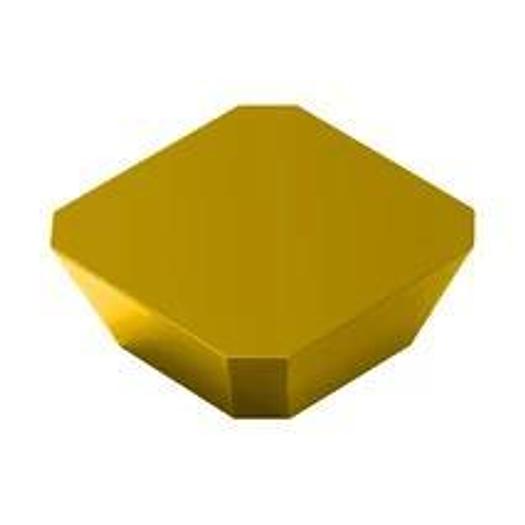

Hex milling insert - face milling 45°/60° (45°/30°)

indexable insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner radius (RE): 1.2 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 45 deg
• fz max: 0.28000000000000003 mm
• fz min: 0.10000000000000001 mm
• fz rec: 0.23999999999999999 mm
• Manufacturer item number: SEKN 12 04 AZ 2040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1.7 mm
• Cutting length, limited (LE): 9.6 mm
• Cutting length, max. (APMX): 6.4 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SE1204AZ
• Cutting direction (HAND): N
• Grade: 2040
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 215~220~37 m/min
• vc min: 160~170~28 m/min
• vc rec: 170~180~30 m/min
• Material classification level 1 (TMC1): M~P~S
• Corner radius R: 1.2 mm
• Grade: 2040
• All ISO application areas: P|M|K|S
